Glasses holder, S60/V70/S80

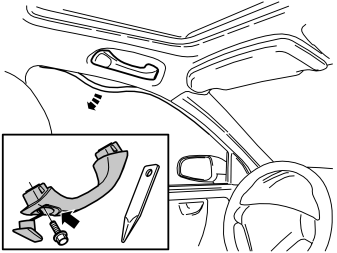

• Carefully prize up the top edge of the cover where the glasses holder shall be located. Use a plastic weatherstrip tool.

Примечание: The glasses holder only fits the two front seat positions for the grab handle in the V70, but in all four positions in the S60 and S80
- Unscrew the two screws under the cover and place them to one side. They shall be used again later.
- Detach the rubber moulding in the top edge of the door opening.
- Carefully bend the outer edge of the headlining to access the catches in the lower edge of the handle's inside.
- Press the catches in and twist the handle off into the car. Place the handle to one side, it shall not be used again.

Примечание: Do not damage the inflatable curtain.

Installing the glasses holder

• Open the glasses holder and hold down the spring cover.
• Position the glasses holder at the grab handle's old location and tighten it to the body with the existing screws.
• Tighten the screws to 8±2 Nm (6 ±1.5 lbf.ft.).
• Remove the protective backing film from both ends of the felt in the glasses case.
• Press the tape in the ends of the felt against the bottom of the glasses case.

Using the glasses holder

• Open the glasses holder and hold down the cover.
• Place the glasses in the cover of the case and release. The cover will then spring back against the upper section of the glasses holder.
