Glasses holder (2004, 2005)

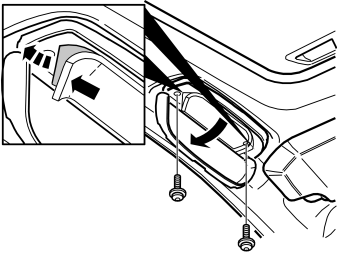

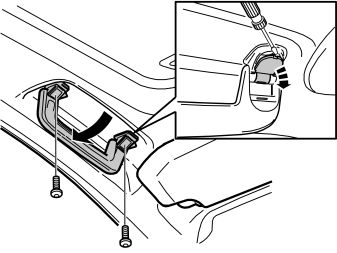

Removing the grab handle

• Fold the grab handle down.
• Carefully prize the cover up using a small screwdriver.

Примечание: The glasses holder fits in all four positions for the grab handles.
- Unscrew the two screws under the cover and place them to one side. They shall be used again later.
- Remove the grab handle and place it to one side, the handle shall not be used again.

Installing the glasses holder

• Open the glasses holder and hold down the spring cover.
• Fit the glasses holder in the old grab handle location and tighten it into the body with the screws.
• Tighten the screws to 8±2 Nm (6±1.5 lbf.ft.).
• Remove the protective backing film from both ends of the felt in the glasses case.
• Press the tape in the ends of the felt against the bottom of the glasses case.

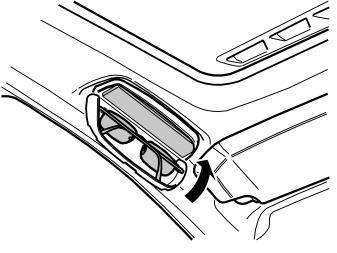

Using the glasses holder

• Open the glasses holder and hold down the cover.
• Place the glasses in the cover of the case and release. The cover will then spring back against the upper section of the glasses holder.
