Glass mounted antenna, GSM 900 MHz

Illustration A does not apply to the S40, V40, S60, V70 (00-) or S80

Примечание: The temperature of the windscreen must not be lower than +10°C.

Windscreen. In the top right-hand corner of the windscreen.

Illustration B does not apply to the S60 or S80

Rear windscreen, 4 door. At the top centre of the rear windscreen.

Illustration C does not apply to the V70(00-)

Right rear side window, 5 door. At the top rearmost point of the side window.

Illustration D applies to the V40 and V70(00-)

Left rear side window, 5 door. At the top rearmost point of the side window.

Illustration E applies to the S40, S60 and S80

Rear windshield, 4 door. In the upper right corner of the rear windshield.

The antenna is positioned as described below:

Примечание: When installing on the rear windscreen, the antenna must not be installed on the heating loops in the windscreen. However, the antenna is not affected by the area of the windscreen shaded black.

• Install the antenna on the external base module.

Installing the external base module

Check the position (as illustrated). Ensure that the antenna is clear of the windscreen trim and wiper blade. Ensure that the antenna can be removed from the external base module when washing the car etc.

• Carefully clean the surface of the glass. Use the cleaning cloth supplied. Wipe dry using a rag
• For optimum adhesion, warm the glass. Use a hairdryer for example

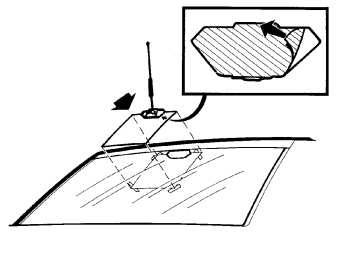

• Remove the backing from the external base module. Secure the external base module on the windscreen. Press hard for 20 seconds
• Ensure that the tape is sealed around the external base module.

Installing the internal base module

Templates are provided to facilitate installation of the internal base module. The templates are necessary because the black shading on the windscreen may conceal the external base module.

• Cut out the two templates provided with the illustrations
• Align one template on the installed external base module. Secure it using tape
• Carefully clean the interior surface of the glass. Use the cleaning cloth supplied. Wipe dry using a rag
• Install the second template on the interior, edge to edge with the external template.

The internal and external base modules must be positioned directly opposite each other.

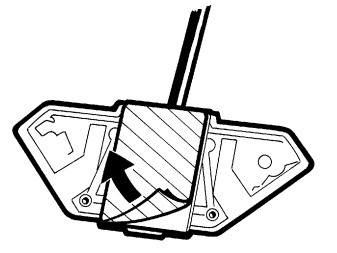

• Remove the backing from the internal base module. Install the internal base module in the cut-out on the second template. Install the internal base module in the same way as the external base module. Press hard for 20 seconds
• Remove the templates.

Routing the antenna cable

Illustration A does not apply to the S40, V40, S60, V70 (00-) or S80

• Windscreen. Route the cable via the A post and on under the dashboard to the telephone.

Illustration B does not apply to the S40, S60 or S80

• Rear windscreen 4 door. Route the cable inside the panel via roof, down at the A post and under the dashboard to the telephone.

Illustration C does not apply to the V40 or V70 (00-)

• Right rear side window, 5 door. Route the cable inside the panel via the roof, down at the A post and on under the dashboard to the telephone.

Illustration D applies to the V40 and V70 (00-)

• Left rear side window, 5 door. Route the cable inside the D post panel down to and along the left rear wheel well, behind the left side cushion, along the sills and up the dashboard to the telephone.

Illustration E applies to the S40, S60 and S80

• Rear windscreen, 4 door with high level stop (brake) lamps. Route the cable via the C post and down inside the side cushion for the backrest to the cable duct on the floor, then along the wiring under the dashboard to the telephone.

Примечание: Route the cable far enough down the bottom edge of the rear windscreen so that the cable is clear of the gas generator for the inflatable curtain.

Illustration F does not apply to the S40, S60 or S80

• Rear windscreen, 4 door with high level stop (brake) lamps. Route the cable from the side of the rear windscreen via the roof to the telephone.

The clips in the kit are used to secure the antenna cable, to the windscreen frame for example.

Внимание: Do not secure the antenna cable to the inflatable curtains.

• Align the antenna so that it is vertical to the ground.
