Gear selector lever knob (2004, 2005)

Applies to manual gearboxes

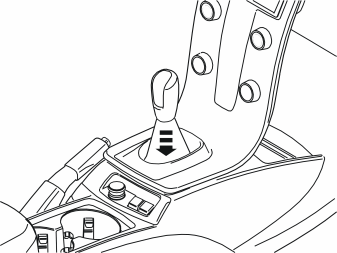

Illustration A

• Pull the rubber boot down from the gear selector lever knob.

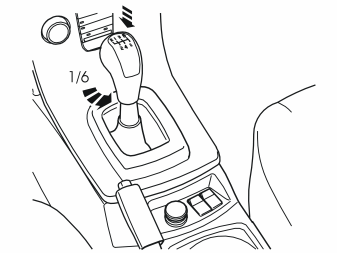

Illustration B

• Press down the gear selector lever knob and turn 1/6th turn anti-clockwise. Then pull the knob straight upwards
• Position the new gear selector lever knob in the same position as the old one was removed from. Press the gear selector lever knob down and turn 1/6th of a turn clockwise
• Check that the gear selector lever knob is secured correctly
• Pull up the rubber boot.

Applies to automatic gearboxes

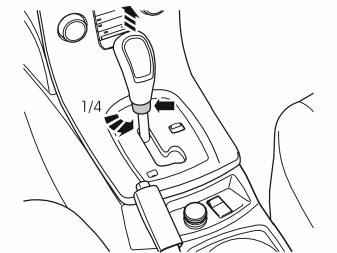

• Turn the circlip on the underside of the gear selector lever knob. Turn the circlip a quarter turn anti-clockwise to stop
• Pull the gear selector lever knob straight up
• Position the new gear selector lever knob in the same position as the old one was removed from
• Press the gear selector lever knob down. Turn the circlip a 1/4 of a turn clockwise to stop
• Check that the gear selector lever knob is secured correctly.
