Front door treble loudspeakers

Примечание: Carry out the operation on both sides.

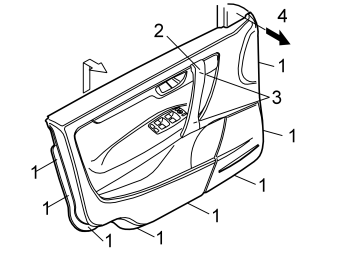

• Remove the clips (1) by pressing in the centre of the clips.
• Remove the cover (2) for the door handle. Use a weatherstrip tool. Start at the upper or lower edge
• Remove the two screws (3) from under the cover
• Remove the cover for the door mirror by pulling the cover (4) straight out
• Disconnect the door panel by sliding the panel upwards and unhooking the top edge.

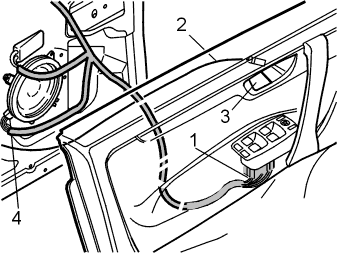

• Remove the three connectors from the module for the door controls (1) and from the loudspeaker (4)
• Remove the cable (2) from the door opener (3). First bend up the catches
• Remove the panel.

• Remove the existing loudspeaker

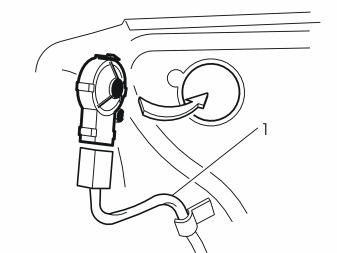

• Press the treble loudspeaker into the hole in the panel
• Connect the cable (1) to the treble loudspeaker.

Reinstall:

• the connectors to the loudspeaker and the module for the door controls
• the cable for the door opener
• the door panel and components according to point ru-RU0900c8af80c49e3b#KC01193244.
