Fog lamps (2008, 2009)

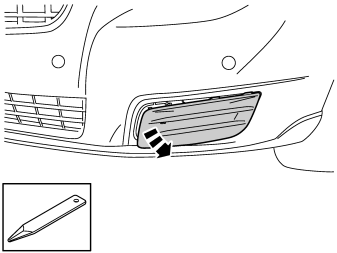

• Carefully pry off the panel starting at the right-hand end. It is secured with six mounting hooks. New panel in the kit.

Illustration A

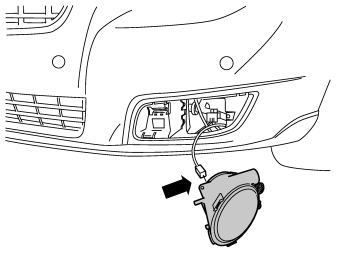

• Detach the pre-routed connector for the fog lamp inside the removed panel.

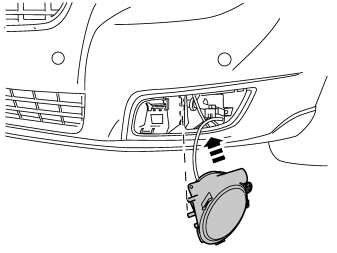

• Connect the connector to the fog lamp.

Illustration B

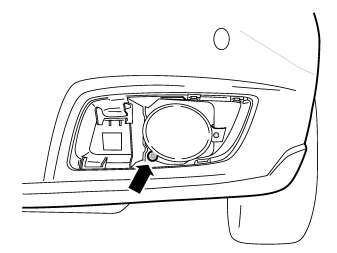

• Position the fog lamp. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

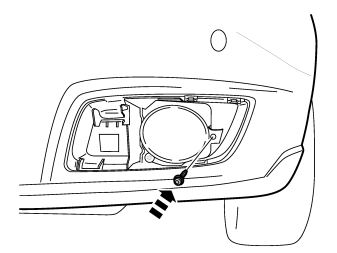

• Install the screws from the kit and tighten the fog lamp properly.
• Repeat previous steps for the other side.

Installing the keypad

• Remove the keypad for the lighting by carefully prying it from the dashboard using a weatherstrip tool. It is secured with two catches on each side.

Примечание: Do not damage the dashboard.

• Unplug the connector from the keypad. Remove the connector. It will not be used again.
• Plug in the connector of the new keypad from the kit.
• Press the keypad into place in the dashboard.

• Set the height of the fog lamps using the adjustment screw.

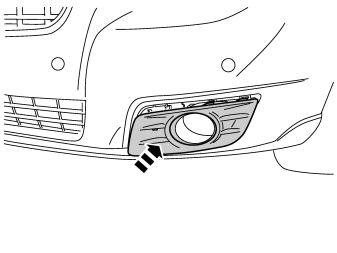

• Install the new panel from the kit around the fog lamp in the bumper cover. Ensure that all mounting hooks engage.
• Repeat previous steps for the other side.

• Download the software for the accessory's function following the service information in VIDA.
