Fog lamps (2007, 2008)

• Turn the ignition key to position 0.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

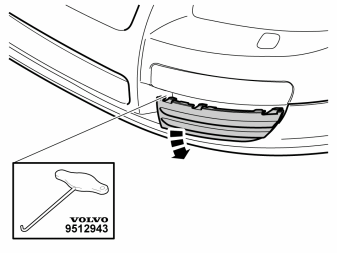

• Carefully remove the panel, starting at the right-hand side using tool P/N. 9512943. It is secured all round by six catches

Illustration A

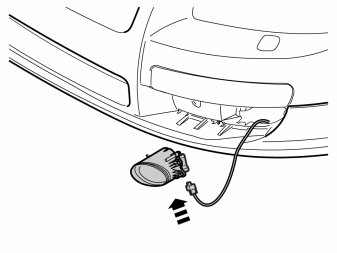

• Detach the pre-routed connector for the fog lamp inside the removed panel.
• Connect the connector to the fog lamp.

Illustration B

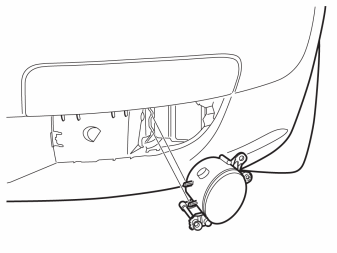

• Install the fog lamp. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

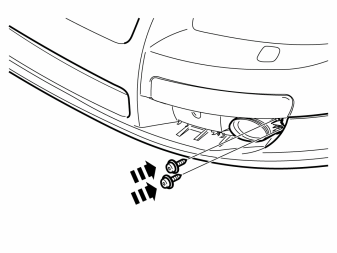

• Use the screws and washers from the kit and tighten the fog lamp securely.
• Repeat previous steps for the other side.

Installing the keypad

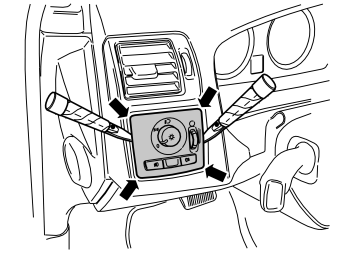

• Remove the keypad for the lighting by carefully prying it from the dashboard using a weatherstrip tool. It is secured with two catches on each side.

Примечание: Do not damage the dashboard.

• Unplug the connector from the keypad. Remove the connector. It will not be used again.
• Plug in the connector of the new keypad from the kit.
• Press the keypad into place in the dashboard.

• Download the software for the accessory's function following the service information in VIDA.

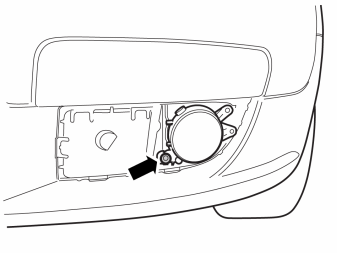

• Set the height of the fog lamps on both sides using the adjustment screw.

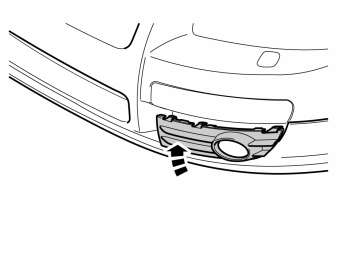

• Fit the new panels from the kit on both sides.
