Fog lamps (2007, 2008)

• Turn the ignition key to position 0.
• Remove the left-hand cover panel under left-hand headlamp by carefully prizing loose the right-hand end face until the four clips on the inside release. Then pull out the panel to the right.

Примечание: Do not damage the paintwork.
- Repeat the operation on the other side.

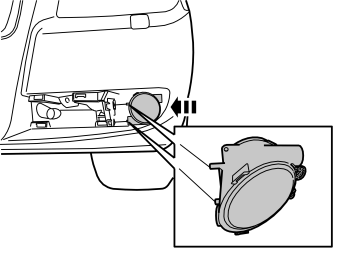

• Take a fog lamp and screw from the kit.

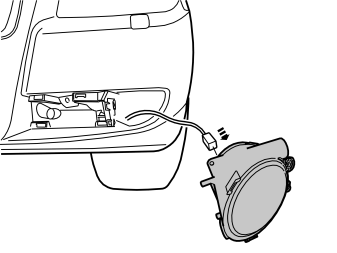

• Connect the fog lamp to the pre-routed cable on the inside of the bumper shell.
• Repeat the operation on the other side.

Illustration A

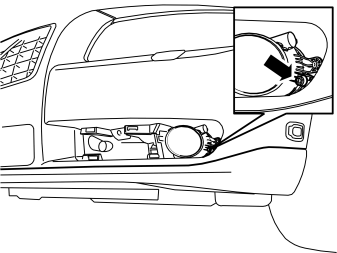

• Insert the two pins on the right side of the fog lamp in the recesses in the bumper shell.

Illustration B

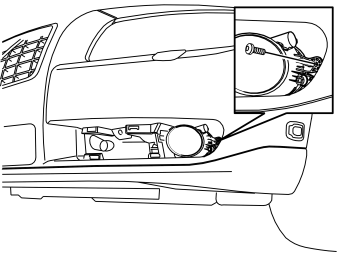

• Position the fog lamp retaining lug over the screw hole on the left side of the bumper shell and insert the screw.

• Repeat the operation on the other side.

• Remove the left end of the dashboard by carefully prying it with a headlining tool until the two catches release. Pull the end panel off rearwards.

• Press the lighting keypad out of the dashboard. It is held in place with two locking tabs on the top side and two on the underside. Use a headling tool as necessary.

Примечание: Be careful with the dashboard as it may be difficult to remove the keypad.

• Unplug the connector from the keypad. Remove the connector. It will not be used again.
• Plug in the connector of the new keypad from the kit.
• Press the keypad into place in the dashboard.
• Programme the software in accordance with the service information in VIDA.

• Reinstall the dashboard end face panel.

• Check the fog lamp's setting. Adjust as necessary using the adjuster screw.
• Repeat the operation on the other side.

• Take a new cover panel from the kit and press it into place (instead of the old one).
• Make sure that all retaining hooks engage.
• Repeat the operation on the other side.
