Fog lamps (2005, 2006)

• Move the left front seat to the rearmost position
• Turn the ignition key to position 0.

• Raise the car.

Applies to cars with air baffles on the left and right-hand sides

• Remove the screw (1) in the air baffle (2) on both sides
• Remove the air baffle. Pull the air baffle backwards.

• Remove the screws (1). Slacken off the centre air baffle (2)
• Release the catches (3). Pull the air baffle backwards
• Remove the air baffle.

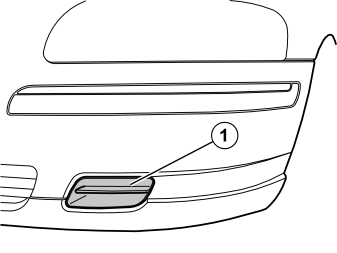

• Remove the covers (1) on the right and left-hand sides.

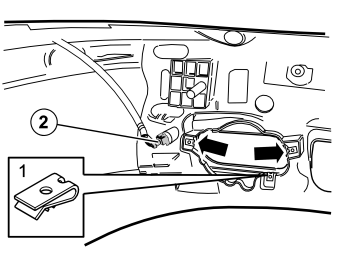

• Install the spring nuts (1) from the kit in the hole for the mounting for the fog lamps
• Disconnect the pre-routed connector (2) from its location
• Repeat the operation on the other side.

• Install the fog lamp. Tighten using the three screws (1) from the kit
• Repeat the operation on the other side.

• Connect the pre-routed connector to the fog lamp on the right and left-hand sides
• Reinstall the centre air baffle.

Illustration A applies only to the USA

Illustration B applies to other markets

• Remove the cover (1) on the lighting control panel
• Install the fibre optic (2) and the button (3) from the kit. Press the button into place
• Program the software. See the service information in VIDA
• Check the function. Align the lamps
• Reinstall the air baffles at the sides (if applicable).
