Fog lamps (2004, 2005)

• Turn the ignition key to position 0

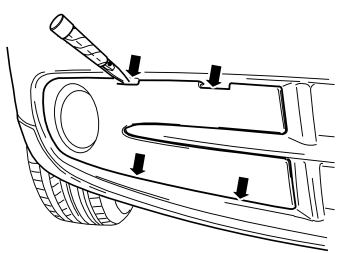

• Detach the panel at the bottom edge of the bumper cover on the right-hand side. First press down the two upper catches for the panel from the outside. Use a weatherstrip tool
• Carefully pry off the panel until the last catches release. Remove the panel. Do not damage the paintwork
• Place the panel to one side. There is a new panel in the kit.

Illustration A

• Disconnect the pre-routed connector for the fog lamp inside the removed panel

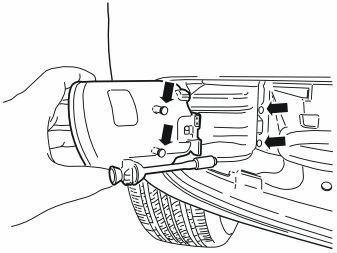

• Connect the connector to the fog lamp. Insert the fog lamp in position. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

Illustration B

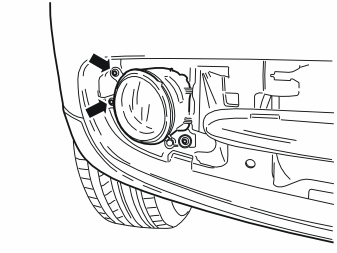

• Install the two screws (from the kit). Tighten the fog lamp securely
• Repeat for the fog lamp on the other side.

• Remove the keypad for the lighting. Carefully pry off the keypad from the dashboard. Use a weatherstrip tool. The keypad is secured by two catches on either side. Do not damage the dashboard.

• Disconnect the connector from the existing keypad. Remove the keypad. The keypad will not be used again
• Connect the connector to the new keypad (from the kit)
• Press the keypad into the dashboard.

• Set the height of the fog lamps using the adjustment screw.

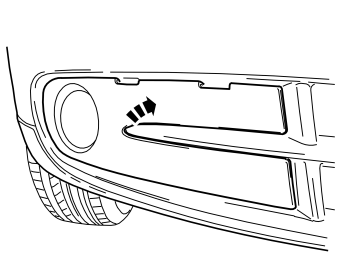

• Install the new panels (from the kit) around the fog lamps in the bumper cover. Ensure that all the catches have engaged.
