Fog lamps (2000, 2001)

• Move the left front seat to the rearmost position.

• Raise the car
• Cut out the embossed covers (1) on the left and right-hand sides of the bumper cover.

Примечание: Cut around the outer (2) marking.
- Score around the marking
- Carefully cut through the material
- Remove the cut-out section. Sand the edges if necessary.

Applies to cars with air baffles on the left and right-hand sides

Remove:

• the screw (1) in the air baffle (2) on both sides
• the air baffle by pulling backwards.

• Remove the screws (1). Slacken off the air baffle (2)
• Release the catches (3). Pull the air baffle backward
• Remove the air baffle.

Applies to model year 01-

Remove:

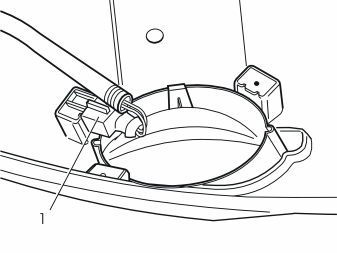

• the pre-routed connector (1) from the parking connector in the fog lamp mounting

• the parking connector from the fog lamp mounting. This will not be reused.

• Repeat the operation on the other side.

• Install the spring nuts (1) in the holes on the left and right-hand sides.

• Install a fog lamp on the right and left-hand sides. Use the screws (1) (from the kit).

Applies to model year 2000

• Take the cable harness from the kit. Connect the short cable end (1) to the left-hand fog lamp. Connect the long cable end to the right-hand fog lamp
• Press the cable into the two clamps (2)
• Connect the connector (3) to the pre-routed connector at the left-hand wing liner
• Press the cable harness for the right-hand fog lamp into place under the air intake. Use the existing clamps (1). See illustration B.

Applies to model year 01-

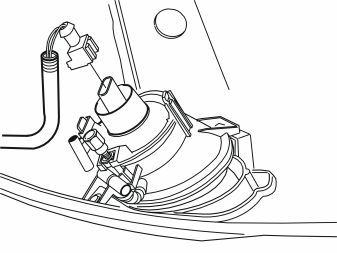

• Connect the pre-routed connectors to the fog lamps on the right and left-hand sides.

• Reinstall the air baffle(s), if applicable
• Lower the car.

• Remove the cover (1) for the fuse holder
• Install a 15A fuse:in terminal 3 for cars from model year 2000 inclusive.in terminal 18 for cars from model year 01- inclusive
• Reinstall the cover.

Remove:

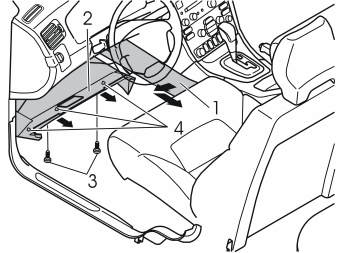

• the side panel (1). First slacken off the screw clip at the rear edge of the panel. Pull the panel outward and backward
• the soundproofing panel (2). First remove the screws (3). Then pry off the soundproofing panel at the rear edge, where it is secured using three clips (4).

• Install the relay (1) from the kit in the relay holder socket marked MI11
• Reinstall the soundproofing panel and the side panel.

• Remove the cover (1) on the lighting control panel
• Install the fibre optic (2) and the button (3) from the kit. Press the button into place
• Program the software. See the service information in VIDA
• Check the function. Align the lamps.
