Fog lamps (1999, 2000)

Carry out the following points for the left and right-hand fog lamps

• Raise the car
• Remove the cover (1) by releasing the plastic catch (2) and pressing it together according to A-A. Pull the cover forward.

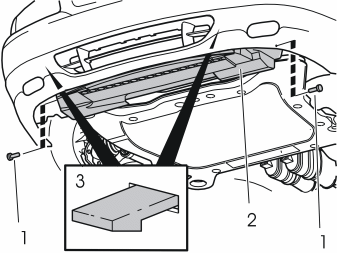

• Remove the screws (1). Slacken off the air baffle (2)
• Release the catches (3). Pull the air baffle backwards
• Remove the air baffle.

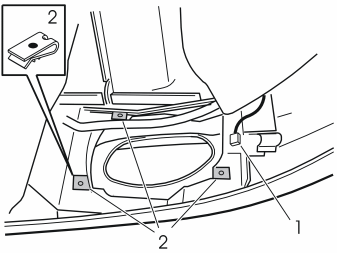

• Disconnect the existing connector (1) for the fog lamp
• Install the spring nuts (2) in the holes.

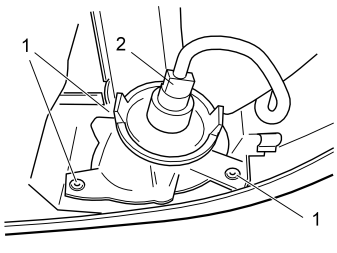

• Install the fog lamp using the screws (1) from the kit
• Connect the connector (2) to the fog lamp.

• Reinstall the air baffle
• Lower the car.

Applies to cars up to and including model year -2004

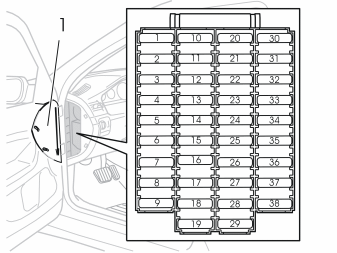

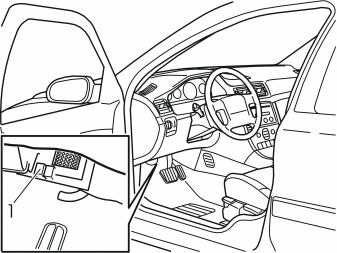

• Remove the cover (1) for the fuse holder
• Install a 15 A fuse:
• Reinstall the cover.

Applies to cars up to and including model year -2004

• Move the left front seat to its rearmost position

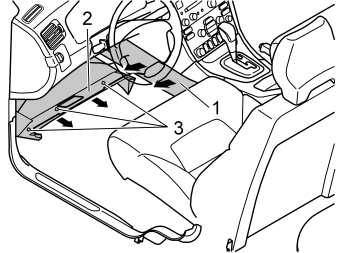

• Remove the side panel (1). First slacken off the screw clip in the rear edge of the panel
• Remove the soundproofing panel (2). Carefully pry it loose. Use a weatherstrip tool or similar. The soundproofing panel is secured using three clips (3).

Applies to cars up to and including model year -2004

• Install the relay (1) from the kit in the relay holder socket marked MI11
• Reinstall the soundproofing panel and the side panel.

Illustration A applies only to the USA

Illustration B applies to other markets

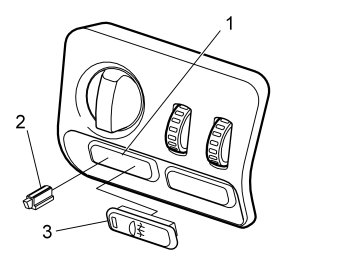

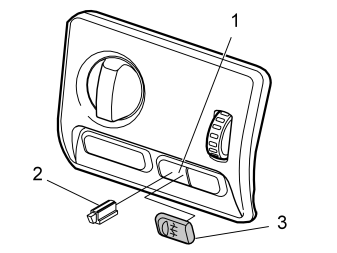

• Remove the cover (1) from the lighting control panel
• Install the light bulb (2)
• Install the button (3) from the kit. Press the button into place
• Program the software. See the service information in VIDA
• Check the function. Align the lamps.
