Fog lamp protectors (5)

• Clean the lenses of the fog lamps
• Clean the gap between the fog lamps and the cut-out in the bumper on both sides.

• Remove the clips and the fog lamp protectors from the kit. Press the clips onto the fog lamp protector as illustrated
• Repeat the operation on the other fog lamp protector.

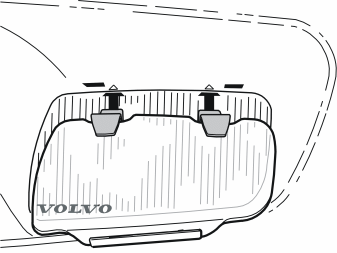

• Slide the fog lamp protector upwards so that the top edges of the two plastic clips are positioned in the gap between the top edge of the fog lamp and the fog lamp cut-out.

Примечание: Do not slide the clips into the two existing holes in the top edge of the cut out.

• Repeat the operation on the other side.

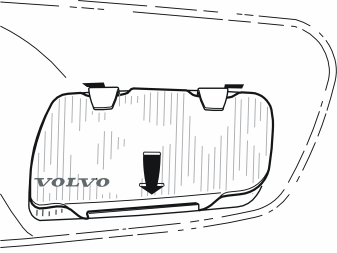

• Press the lower edge of the fog lamp protector so that the lower mounting supports engage between the lower edge of the fog lamp and the fog lamp cut out
• Repeat the operation on the other side.

In order to maintain a good beam of light, regularly remove the fog lamp protectors and clean the fog lamps and the fog lamp protectors.

Removing:

• Carefully pry off the fog lamp protector at the lower edge using a weatherstrip tool.

Осторожно: Do not use a cleaning agent that has an etching effect on the fog lamp protector.
