Electric engine heater, 110 V

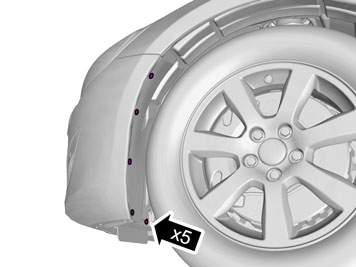

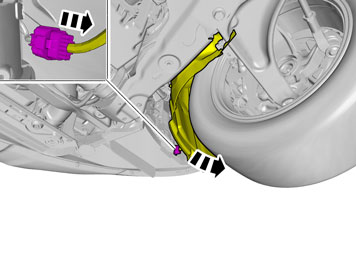

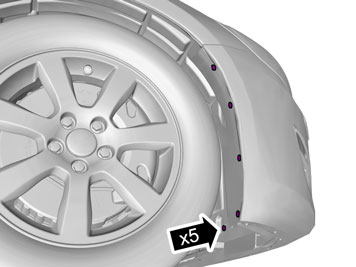

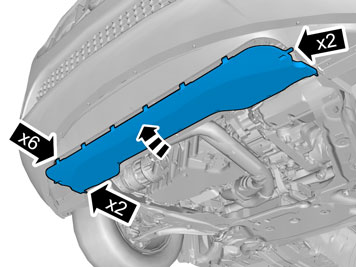

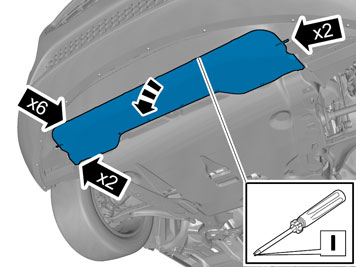

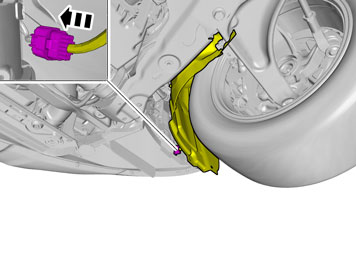

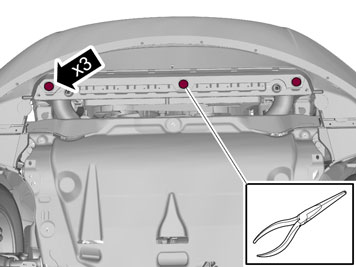

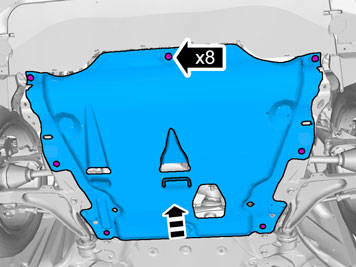

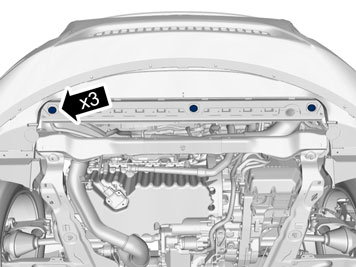

• Remove air baffle.

Примечание: Get help from a colleague for this procedure.

Illustration A, B, C and D

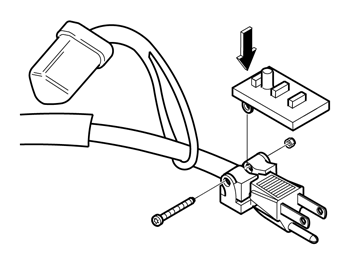

• Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

Applies to cars without R-design

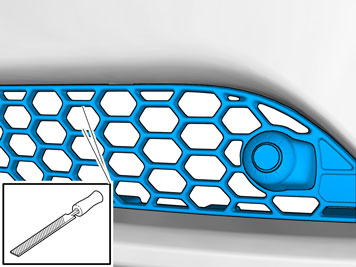

• File out to make room for the connector.

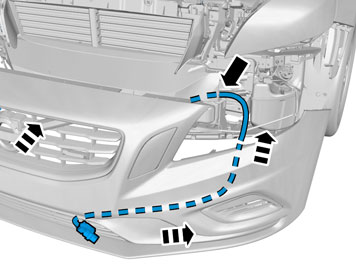

• Pull through the cable.

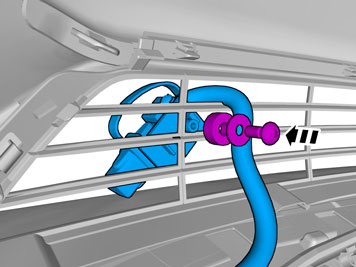

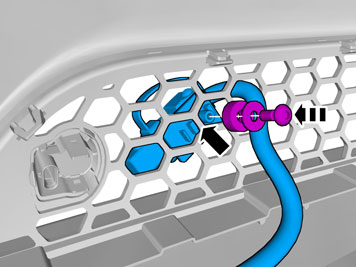

• Place the contact as illustrated and tighten the spacer and washer with screw.

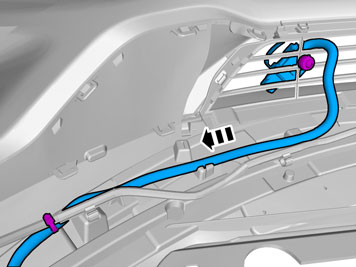

• Clamp the cable by the existing cables in the position shown.

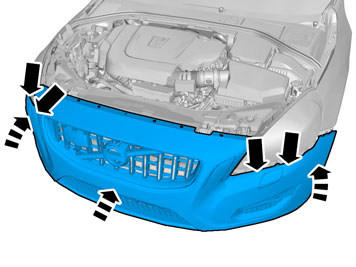

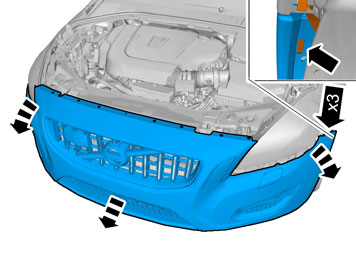

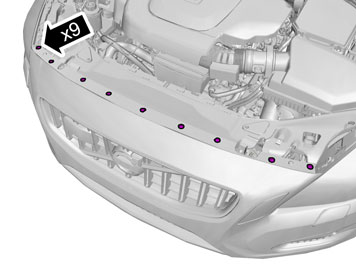

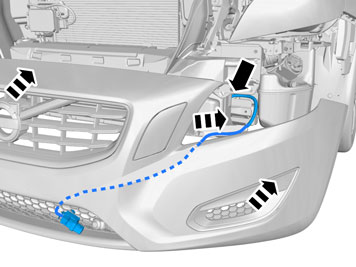

• Position the bumper cover for re-installation.
• Insert the cable between the washer reservoir and radiator bracket.

Applies to cars with R-design

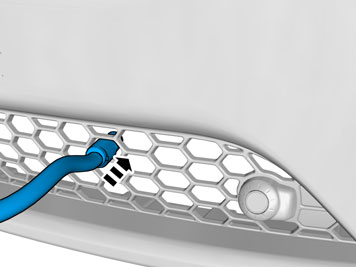

• Pull through the cable.

• Place the contact as illustrated and tighten the spacer and washer with screw.

• Clamp the cable by the existing cable in the position shown.

• Position the bumper cover for re-installation.
• Insert the cable between the washer reservoir and radiator bracket.

Applies to all models

Примечание: Get help from a colleague for this procedure.

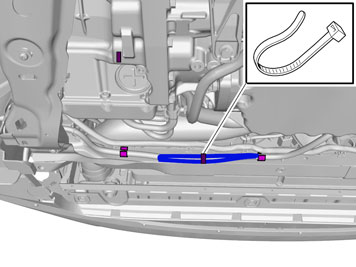

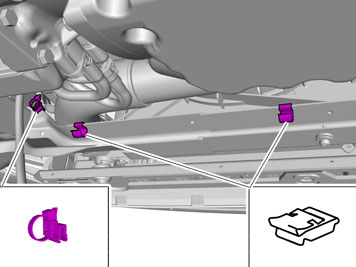

• Install clamps along the upper edge of the subframe.

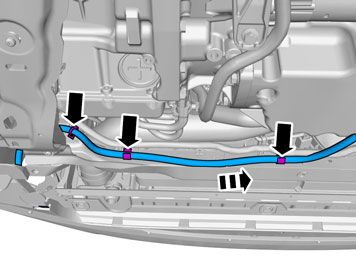

• Route the cable along the subframe and secure it in the cable tie and the other clamps.

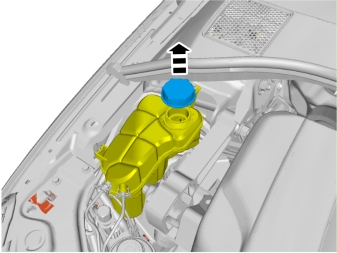

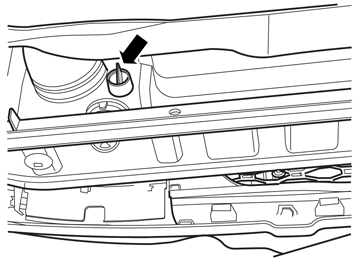

• Drain the coolant.
• Tighten the tap after the coolant has been drained.

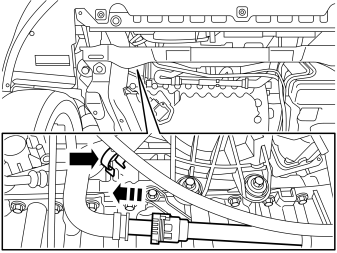

• Detach the double clamp on the cable to the alternator that is located on the thermostat housing hose.

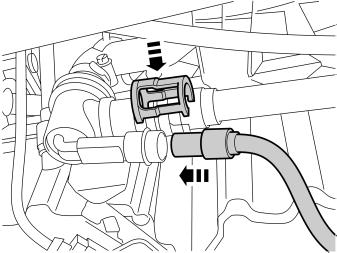

• Rotate the catch on the thermostat housing pipe anticlockwise, detach the hose and drain the remaining coolant.

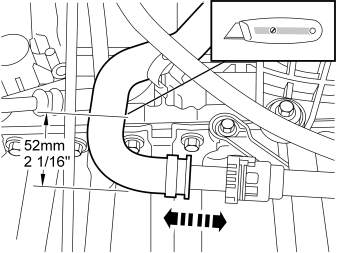

• Cut off the hose using a sharp knife in accordance with the measurements. Make the incision as straight as possible. The short hose-end that was cut off shall be used again.

Подсказка: Install a piece of tape over the cutting location and mark with a pen where the incision should be. Reinstall the hose connection in the pipe in order to support the cutting process.

Примечание: Do not damage the adjacent cable harnesses.

• Cut out the short cut-off hose section as illustrated.
• Discard the cut-off hose bend.

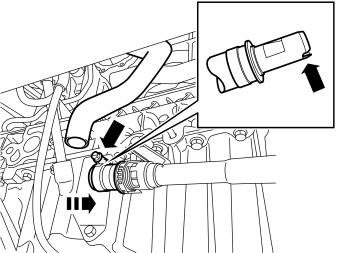

• Remove the short hose-end and press it on the pipe that runs to the thermostat housing. Make sure that the cut-out in the hose connection is turned down and fits into the corresponding pin in the pipe connection.
• Rotate the catch on the pipe clockwise against the stop.
• Take a hose clamp from the kit and install it on the hose-end.

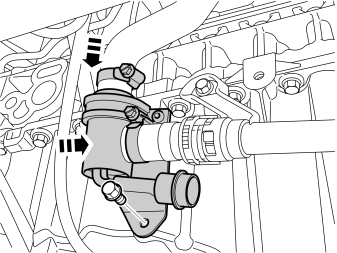

• Take the engine block heater, bracket, rubber coated clamp and screw from the kit and assemble them as illustrated.
• Do not tighten the screw yet.

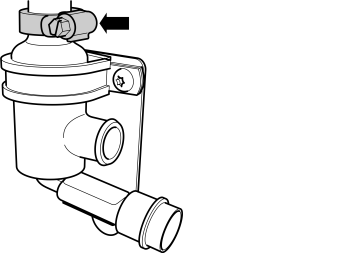

• Take the hose clamp from the kit and fit it onto the engine block heater's upper connection.

• Position the engine block heater with bracket in the front edge of the oil sump and connect both hose-ends to the engine block heater's connections.
• Take a screw from the kit and tighten the bracket with engine block heater into the existing hole in the oil sump.

Примечание: The screw is self-tapping so insertion may be slow. Make sure that the screw is centred straight into the hole, so that the screw head is flat against the bracket.

• Now adjust the engine block heater in the rubber coated clamp so that the hoses are properly fitted on the engine block heater's connections.
• Tighten the screw to the rubber coated clamp.

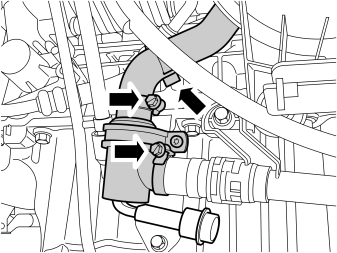

• Tighten the hose clamps to the engine block heater.
• Install the double clamp to the cable for the alternator in the engine block heater's upper hose.

• Lubricate the O-ring on the connector for the heater's cable with low temperature grease P/N 1161427.

Примечание: Do not get any grease on the surfaces of the connector.

• Connect the cable from the front engine block heater socket to the engine block heater and press it in firmly.
• Press a locking sleeve from the kit over the cable splice.

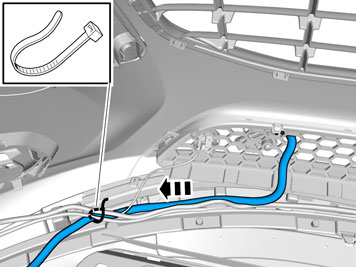

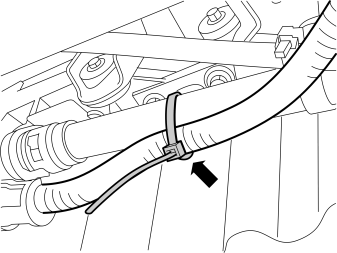

• Clamp the cable at the radiator pipe using a cable tie.

• Pull back the cable excess and clamp together using cable ties between the clips in the subframe.

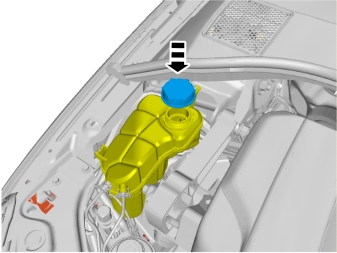

• Fill with coolant, run the engine to operating temperature, bleed the cooling system and check that there are no leaks.
• Top up the cooling system as required.
