Digital radio, DAB

Applies to all models

• Turn the ignition key to position 0.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Applies to the S60

Applies to the V60

Applies to all models

• Install the receiver in the bracket and tighten.

Applies to the S60

• Install the unit with bracket on the reverse of the rear backrest and lugs in the floor.

• Take the adapter wiring from the kit and connect the large connector to the receiver, and push the clips for the cables in the holes and panel edge in the bracket.

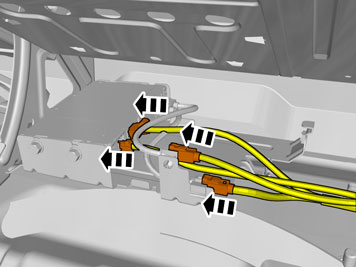

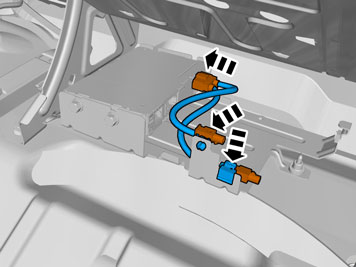

• Connect the four pre-routed power, antenna and fibre optic cables to the receiver and adapter wiring. The cables can be found under the mat where the unit is to be positioned.

Applies to the V60

• Install the unit with bracket on the reverse of the rear backrest.

• Take the adapter cable from the kit and connect the large connector to the receiver, and push the clips for the cables in the holes and panel edge in the bracket.

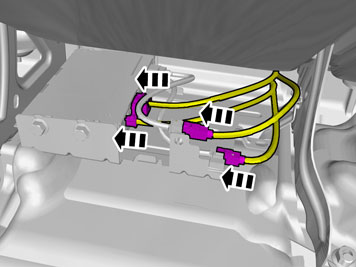

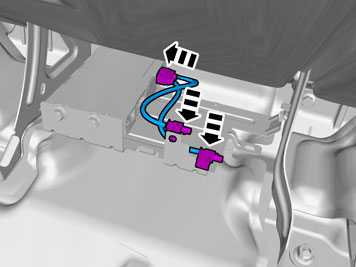

• Connect the four pre-routed power, antenna and fibre optic cables to the receiver and adapter wiring. The cables can be found under the mat where the unit is to be positioned.

Applies to the S60

Applies to the V60

Applies to all models

• Download software for the accessory's function according to service information in VIDA. See VIDA or accessories catalogue for article number on software.
