Combined instrument panel, R-design (2008, 2009)

• Turn the ignition switch to position 0.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

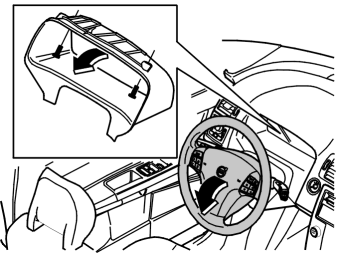

• Adjust the steering wheel to the outermost and lowermost position.

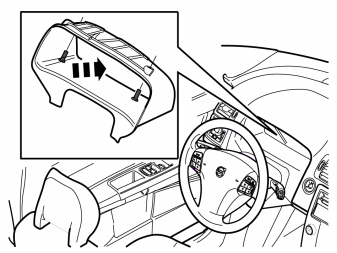

• Remove the two screws at the upper edge of the surround for the combined instrument panel.
• Remove the surround.

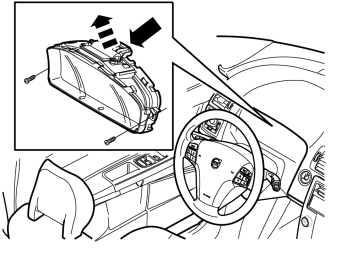

• Remove the two screws at the sides of the instrument panel.
• Raise it slightly and unhook it from the holder on the inside of the instrument panel.
• Lift the instrument panel out and disconnect the connector.

Примечание: Do not damage the instrument panel. The glass is easily scratched.

• Place the instrument panel to one side.

• Take the new instrument panel and connect the connector.

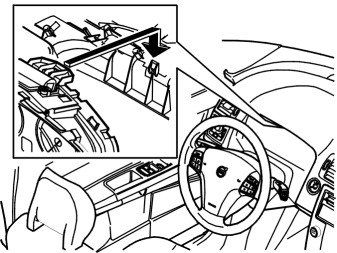

• Insert it in position and hook it onto the holder on the inside.
• Tighten using the two screws.

• Download software for the relevant vehicle type in accordance with the service information in VIDA.
