Centre loudspeaker (2004, 2005)

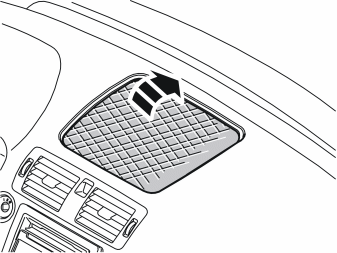

Illustration A

• Remove the loudspeaker grille as follows: Insert tool P/N 999-5919-46 into the joint between the loudspeaker grille and the dashboard as illustrated, until it engages
• Twist the tool 90° so that the bent section engages with the underneath of the loudspeaker grille.

Illustration B

• Pull upwards until the loudspeaker grille detaches. The loudspeaker grille is securely fastened by four clips. Move the tool closer to the clip to facilitate removal.

Примечание: Do not damage the dashboard.

• Turn the ignition key to position 0.

• Remove the carpet covering the hole under the loudspeaker grille. Discard it, it will not be reused.

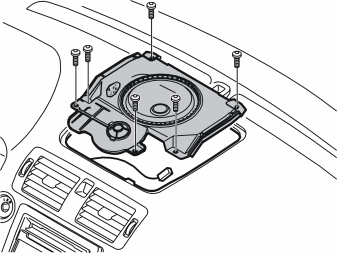

• Take the loudspeaker and six screws from the kit
• Connect the pre-routed connector to the loudspeaker
• Install the loudspeaker in the hole in the dashboard. Tighten using the six screws
• Press the loudspeaker grille into place.
