Centre loudspeaker (2003, 2004)

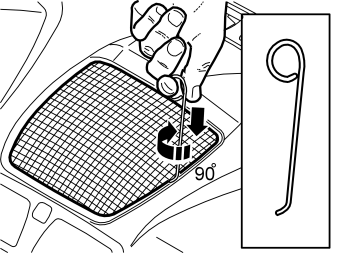

Illustration A

Remove the loudspeaker grille as follows:

• Take a piece of 1.5 mm (1/16”) diameter welding rod. Bend one end to 90° (L=5 mm (13/64”)). The other end is bent to form a handle
• Insert the first bent end down into the joint between the loudspeaker grille and the dashboard as illustrated, until it engages
• Twist the welding rod 90° so that the bend section engages with the underneath of the loudspeaker grille. It may necessary to move the welding rod along the joint to twist the rod around.

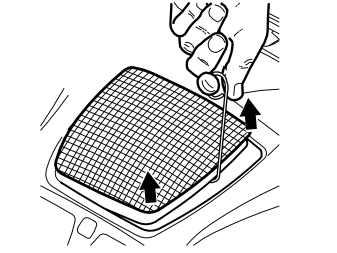

Illustration B

• Pull upwards until the loudspeaker grille detaches. The loudspeaker grille is securely fastened by four clips.

Примечание: Do not damage the dashboard.

• Place the loudspeaker grille to one side.

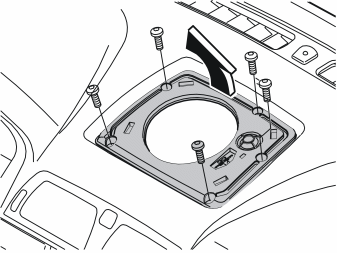

• Remove the five screws in the loudspeaker cut-out bracket
• Pull up the bracket and place to one side. The bracket will not be reused.

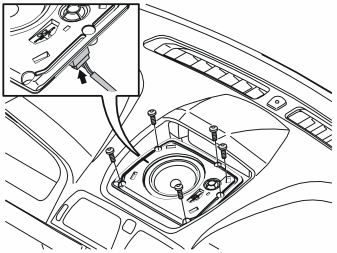

• Take the new loudspeaker, connect the pre-routed connector in the dashboard to the loudspeaker
• Position the loudspeaker. Tighten the loudspeaker using the five screws positioned in the loudspeaker cut-out bracket
• Reinstall the loudspeaker grille.
