CD box (in the glove compartment)

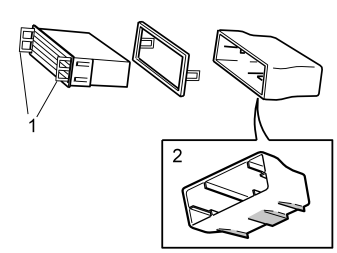

• Separate the CD-bracket, the frame and the CD holder. Release the circlips (1) on the CD holder.

Illustration A applies to the 850

Illustration B applies to the C70, S70 and the V70 (-00)

Illustration C applies to the 960, S90 and the V90 with passenger side airbags

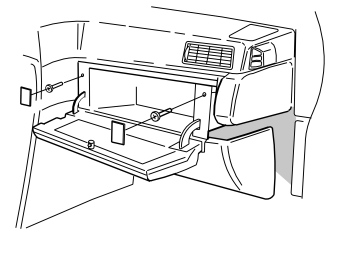

• Open the glove compartment.
• Remove the holders for the cover for the glove compartment.

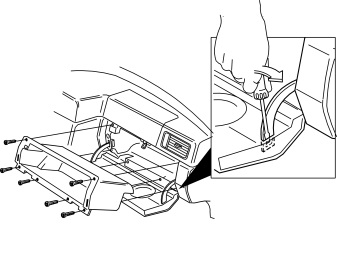

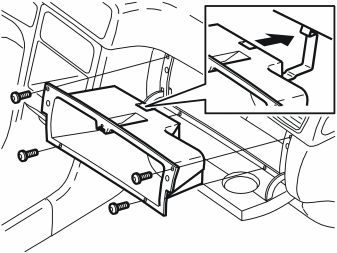

• Remove the screws from the glove compartment. Pull the glove compartment out.

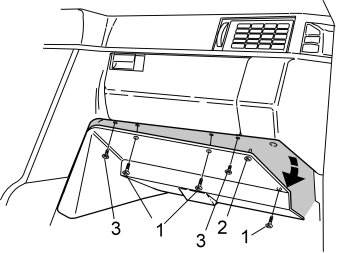

Illustration D and E applies to the 960, S90 and the V90 without passenger side airbags

• Remove the screws (1).
• Remove the clip (2).
• Remove the screws (3).

• Remove the trim cover and the screws.

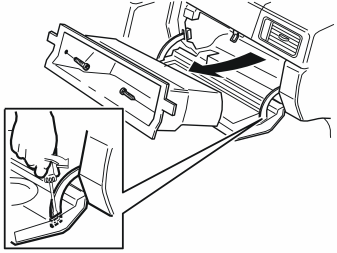

• Remove the glove compartment by pulling the glove compartment to the right and backwards.

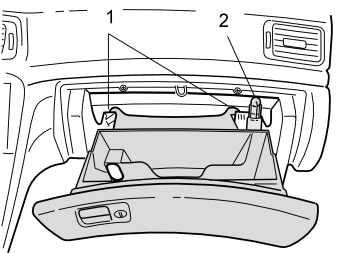

Illustration F applies to the S60, V70 (00-) and the S80

• Open the glove compartment.
• Carefully pull the catches (1) backwards until they release.
• Pull off the spring holder from the upper mounting (2).

Applies to the 850, C70, S70, V70(-00), 960, S90 and V90

Illustration A applies to the 850

Illustration B applies to the C70, S70 and the V70 (-00)

Illustration C applies to the 960, S90 and the V90 with passenger side airbags

Illustration D applies to the 960, S90 and the V90 without passenger side airbags

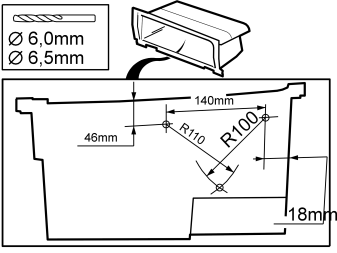

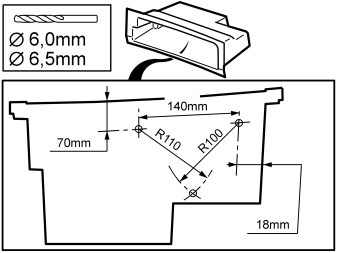

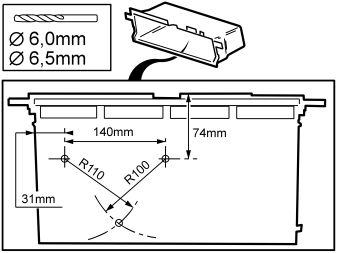

• Measure as illustrated and mark up for holes on the underneath of the glove compartment.
• Drill out the holes. Use a Ø6 mm (15/64“) drill bit.
• Position the CD bracket in the glove compartment so that the guides are against the bottom of the glove compartment.
• Mark the holes on the CD bracket using the drilled holes in the glove compartment as a guide.
• Drill out the holes in the CD bracket. Use a Ø6 mm (15/64“) drill bit.
• Remove the CD bracket.
• Drill out the holes in the glove compartment. Use a Ø6.5 mm (1/4“) drill bit.

Applies to the S60, V70 (00-) and the S80

Illustration A

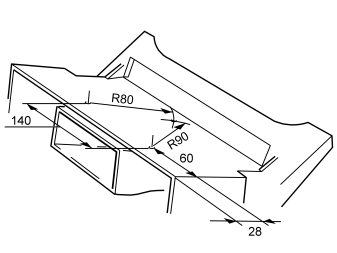

• Measure and drill holes in the glove compartment. Use a Ø5 mm (13/64“) drill bit.

Illustration B

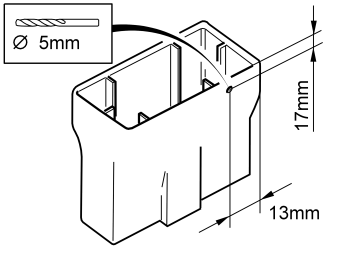

• Measure and drill the hole in the CD storage box. Use a Ø5 mm (13/64“) drill bit.

Illustration C

• Position the CD storage box in the glove compartment. Install a rivet as a guide by hand. Do not rivet into place.
• Hold the opening of the CD storage box parallel with the edge of the glove compartment. Drill the next hole in the CD storage box using the glove compartment as a template.
• Install a rivet by hand in the new hole. Do not rivet into place.
• Drill the last hole in the CD storage box using the glove compartment as a template.
• Remove the CD storage box.

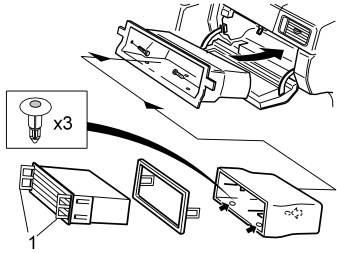

Install:

• the glove compartment.
• the CD bracket in the glove compartment. Use the supplied clips.
• the frame on the CD bracket.
• the CD holder in the CD bracket. Ensure that the covers for the CD compartment on the CD holder hang downwards at the open position. Press in the catches (1).

Applies to the S60, V70 (00-) and the S80

• Clean the mating surfaces.

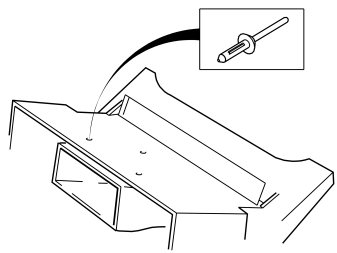

• Rivet the CD storage box and the glove compartment together.
• Install the frame.
• Install the CD compartment. Press in the catches (1) (see illustration 2F).
• Install the spring holder (2) in the upper mounting (see illustration 2F).
• Close the glove compartment.

Applies to the 960 S90 and the V90

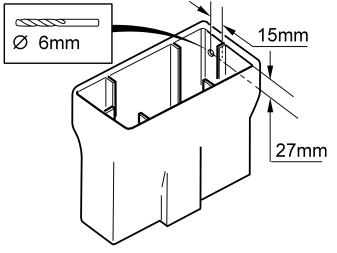

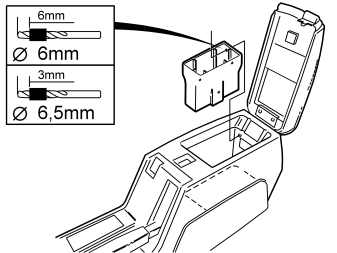

• Measure as illustrated. Mark up for holes in the inside of the CD bracket.
• Drill out the holes. Use a Ø6 mm (15/64“) drill bit.

• Position the CD bracket in the centre console. Position the guides towards the driver's seat.
• Use the CD bracket as a drilling template. Drill a hole using a Ø 6 mm (15/64“) drill in the centre console compartment. Use a 6 mm (15/64“) drill stop.
• Remove the CD bracket. Drill out the hole in the centre console using a Ø 6.5 mm (1/4“) drill bit. Use a 3 mm (1/8”) drill stop.

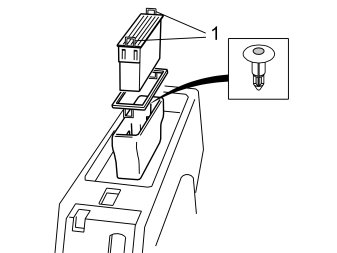

• Install the CD bracket in the centre console using the supplied clips.
• Install the frame on the CD bracket
• Install the CD holder in the CD bracket. Press in the catches (1).
