Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (-09) | — | 2001–2003 |
Примечание: The carrier bag holder, which is integrated in the cargo compartment carpet, can only be used if the car is equipped with the smaller temporary spare wheel for speeds up to 80 km/h.
To use the accessory in cars equipped with a full size spare wheel, a new spare wheel and a spacer collar with a support plate must be purchased separately.
Preparations
- Remove the existing cargo compartment carpet. Fold the front section of the carpet over the rear section. Lift the entire carpet forward slightly, twist the carpet. Remove the carpet from the cargo compartment. Place the carpet to one side.

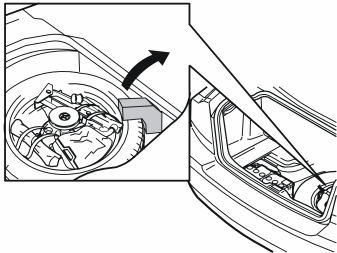

- Remove the existing polystyrene support by the spare wheel.
Illustration A applies to cars equipped with the small temporary spare wheel

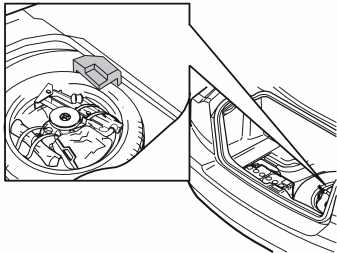

- Install the new polystyrene support by the spare wheel as illustrated. Remove the spare wheel if necessary.
Illustration B applies to cars with a full size spare wheel
- Remove the existing spare wheel
- Install the smaller spare wheel and the new polystyrene support as illustrated in illustration A

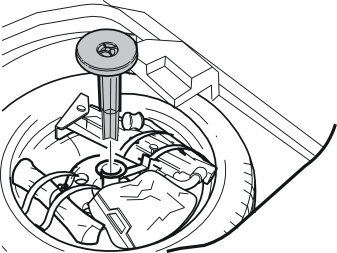

- Press the spacer pipe into place with the support plate in the attachment unit.
Installation
Illustration A applies to two wheel drive cars
-

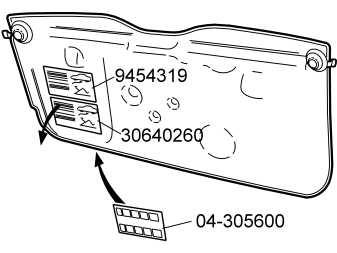

Remove the lower decal (P/N 30640260). It will not be reused.
-
Applies to cars with a detachable tow hitch: Take the yellow decal (P/N. 04-305600) from the kit. Remove the backing from the tape. Install the new decal in the place of the decal removed. Ensure that the decals do not overlap and hide the text. Press the decal into position securely.
Illustration B applies to four wheel drive cars
-

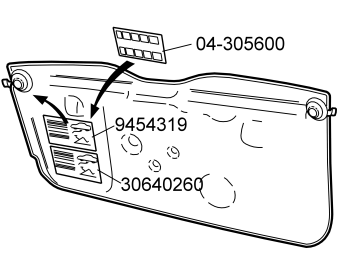

Remove the upper decal (P/N 9454319). It will not be reused.
-
Applies to cars with a detachable tow hitch: Take the yellow decal (P/N. 04-305600) from the kit. Remove the backing from the tape. Install the new decal in the place of the decal removed. Ensure that the decals do not overlap and hide the text. Press the decal into position securely.
- Place the new combined cargo compartment carpet / carrier bag holder on a flat underlay with the lower side facing upwards. There are two yellow decals on the left-hand side of the cargo compartment carpet / carrier bag holder.
- Install the combined carrier bag holder/cargo compartment carpet in the cargo compartment
- Securely lock the rear edge into place. Twist both the knobs in the direction of the arrow.
Use
- Fold up the carrier bag holder

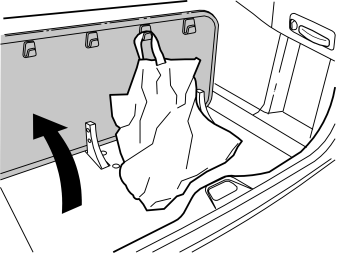

- Hook the carrier bag onto one of the hooks.
