Применимость
| Модель | Двигатель | Год |
|---|---|---|
| V50 | — | 2004–2012 |
- Before installing check the measurement at point A = 333 mm. Adjust as necessary.
- Position the cargo compartment wall with the clamps into the car.

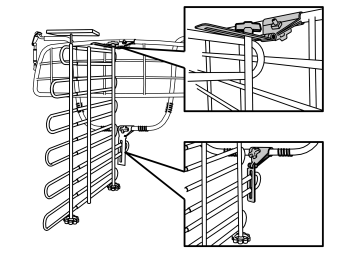

- Open the upper clamp and affix it loosely on the top bar of the safety grille.
- Open the lower clamp and affix it as illustrated. Tighten the clamps only exactly as much as necessary to grip the grille, do not tighten them yet.
- Adjust so that the cargo compartment wall is vertical and in the centre of the cargo compartment.

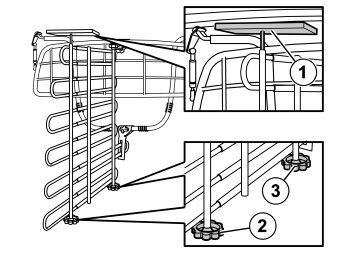

- The support plate (1) must be parallel with the roof panel.
- Screw down the rear support foot (2) so that the cargo compartment wall is tensioned.
- Screw down the front support foot (3) so that the cargo compartment wall stands in a straight, vertical position.

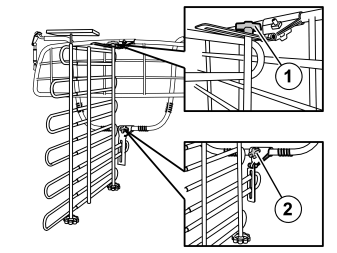

- Tighten the knobs (1) and (2).
- Check that the cargo compartment wall does not make contact with the tailgate when it closes.
