Cargo compartment sun blind

The sun blinds are the same for the right and left-hand sides.

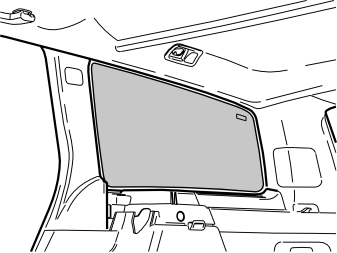

• Hold the side sun blind up against the side window. Ensure that the Volvo decal is towards the rear of the car and secured at the top edge
• Press the edges of the sun blind against the side window.

• Repeat the operation on the other side window.

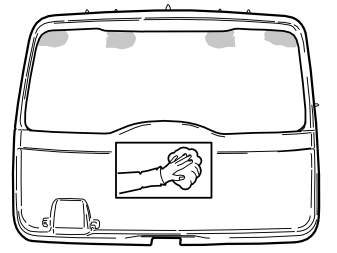

• Clean the marked surfaces (as illustrated) on the rear windscreen, where the holders for the sun blind are to be installed. Use a mixture of 30% windscreen washer fluid and 70% water
• Wipe dry.

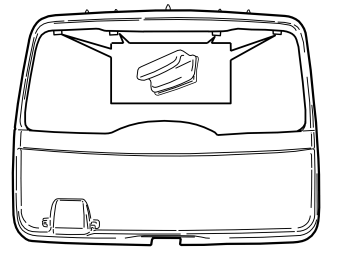

• Remove the masking tape from the four holders. The holders secure the sun blind at the top edge of the rear windscreen.

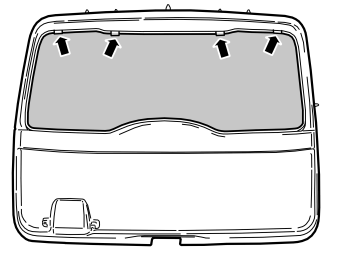

• Press the four holders into place on the rear windscreen, as close to the top and bottom edges of the panel as possible.

• Hold the rear windscreen sun blind up against the rear windscreen. Ensure that the Volvo decal is at the top edge
• Hook the sun blind into the holders on the rear windscreen
• Press the edges of the sun blind against the rear windscreen.

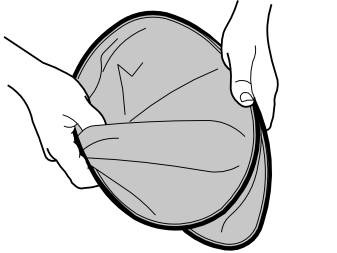

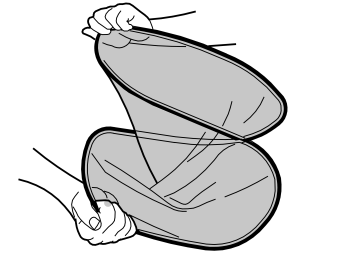

• Grip two diagonal corners and twist the sun blind as illustrated. Turn the sunblind on itself. Minimal force is required to fold the sun blind.
