Cargo compartment cover (2003, 2004)

Applies to cars with three rows of seats

• Fold down the third row of seats.

Applies to all models

• Fold the rear backrests forwards

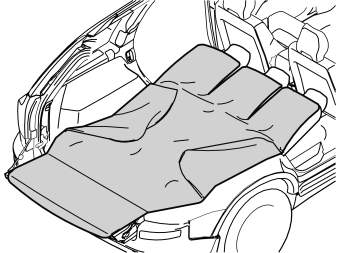

• Open out the dirt cover in the cargo compartment so that the three loose flaps are on the reverse of the backrests.

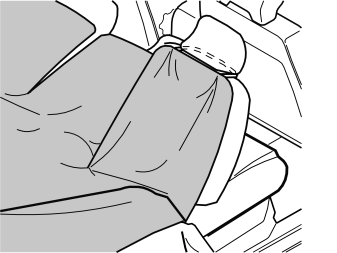

• Fold up one of the outer backrests slightly. Thread the strap on the flap over the head restraint.

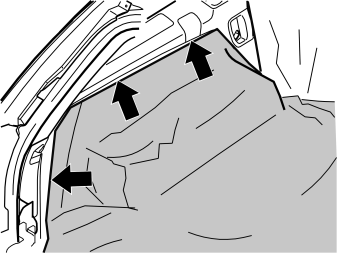

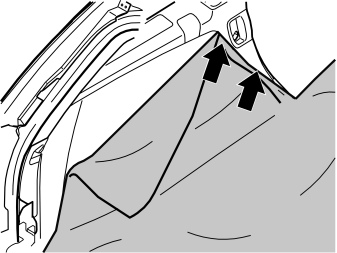

• Feed into the side panel by inserting the stiff edges of the dirt cover into the joint between the plastic and textile sections.

• Repeat the previous procedure for the remaining backrests and side panel.

• Fold up the backrests. At the same time insert the dirt cover in the space between the backrest and the cargo compartment floor.
