Cable harness for the radio (accessory electronic module)

• Make a note of the anti-theft radio code
• Move the right front seat to the rearmost position
• Turn the ignition key to position O
• Cars with manual gearboxes: Remove the ignition key.

Примечание: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.
- Disconnect the battery negative lead.

Applies if the radio is already installed

• Press in the two latch handles on the sides of the radio
• Grasp the latch handles. Pull the radio out
• Disconnect the connectors from the radio. Place the radio to one side.

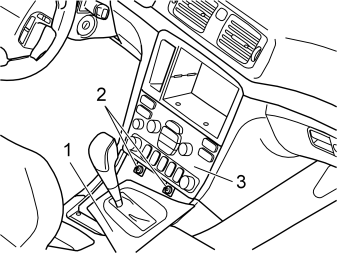

• Remove the two screws (1) holding the dashboard environment panel (2). These two screws are on the base of the radio tray.

Illustration A applies to the S60 and the V70

• Remove the panel in front of the gear selector lever. Pry off the panel using a weatherstrip tool
• Move the gear selector lever to its rearmost position.

Illustration B applies to the S60 and the V70

• Remove the panel. Press in the catches at the front edge.

Illustration C applies to the S80

• Remove the panel (1) and the boot. Carefully pry off the panel. Use a weatherstrip tool.

Illustration A applies to the S60 and the V70

• Remove the two screws from the dashboard environment panel.

Illustration B applies to the S80

• Shift the gear selector lever into rearmost position
• Pull the panel (1) with the boot backward as far as possible
• Remove the screws (2) from the dashboard environment panel (3).

• Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the centre console and the side of the dashboard environment panel
• Detach the dashboard environment panel by pulling it downwards while maintaining the same angle. Some force is required because the panel is tightly installed
• Disconnect the connectors on the reverse of the dashboard environment panel. Place the dashboard environment panel to one side.

Примечание: If any of the outer hooks break off, these must be repaired. The method for this can be found in the Service Manual in the section covering the dashboard.

• Remove the screws (1) from the radio bracket
• Pull out the bracket. Pull the lower corner while pressing downwards.

Remove:

• right side panel (1) by turning the screw clip at the rear edge of the panel half a turn. Pull the panel outwards and backwards
• the sill trim panel (2) at the right front door
• the covers (3) for the front seat mounting.

Applies to S60 and S80

• Remove the seat cushion (1). First lift the front edge of the cushion and then pull forwards
• Fold the right rear backrest forward.

Applies to the V70

Illustration A

• Fold the right rear seat cushion forward.

Illustration B

• Fold the right rear backrest forward.

Illustration C

• Remove the right side cushion. First pull the upper edge of the cushion backwards. Then lift the cushion.

• Pull the door sill out of the right-hand rear door. Start at the rear edge
• Push the floor and insulation panels to one side so that the connectors in the front edge of the wheel arch can be seen.

• Remove the cargo compartment carpet at the rear edge. First turn the two knobs (1) 90°.

• Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.

• Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the cargo compartment carpet through the tailgate opening.

• Remove the cargo compartment carpet.

• Press the centres of the clips at the lower edge of the folding side panel on the left-hand side until a click is heard
• Remove the clips.

• Turn the handle (1) on the right-hand side through 90°.
• Fold the side panel inwards. Lift the panel out.

Remove:

• the clips (1) in the right front side panel in the cargo compartment
• the clip (2) at the top of the front edge on the side panel for the rear folding backrest (two clips on the S80)
• the panel.

• Remove the right-hand folding panel in the cargo compartment.

• Remove both the floor hatches. First lift the rear edges of the floor hatches slightly. Then pull the hatches backwards from their mountings.

Illustration B applies to V70 with an auxiliary rear facing seat

• Remove the right side floor hatch by prising up one end. Use a weatherstrip tool.

• Remove the right-hand side panel. First remove the cover and the screw at the front edge
• Pull the top of the panel out until the clips release
• Fold the panel inwards. Lift the panel out.

Illustration B applies to cars with an auxiliary rear facing seat

• Remove the right-hand side panel. First remove the cover and the screw from the front edge
• Pull the top of the panel out until the clips release
• Pull the seat belt out of the holder (1)
• Remove the safety cover. First bend out the hooks on the underside. Pull the cover straight up
• Fold the panel inwards. Lift the panel out.

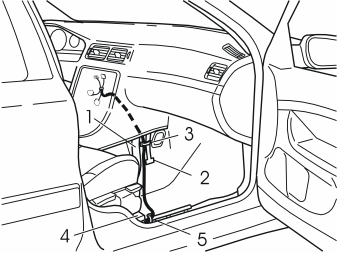

• Route the cable harness (from the kit) from the cut out for the radio between the front air duct (1) and the stay (2) for the centre console
• Clamp the cable to the stay. Use the tie strap (3) from the kit
• Route the cable harness further under the carpet and along the front air duct to the seat mounting member (4)
• Secure the cable harness at the existing cable harness (5) using the tie strap from the kit.

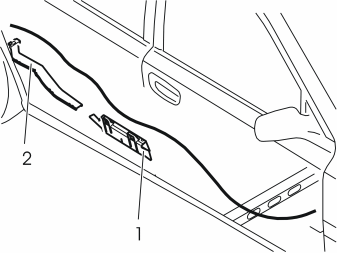

• Continue to route the cable under the carpet and under the cable ducts (1 and 2) along the right-hand side of the car towards the cargo compartment. Ensure that the cable harness is securely pressed down between the sills and carpets
• Route the cable harness under the existing wiring and the connectors by the cable duct (2).

Illustration A applies to the S60 and the S80

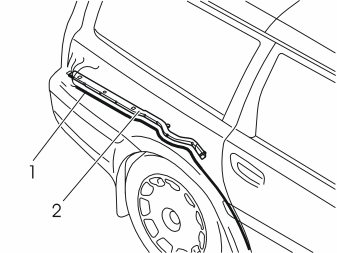

• Route the cable harness (1) out through the hole in the bodywork at the front edge / top edge of the wheel arch and along the right-hand side of the rear cable duct (2) to the right tail lamp.

Illustration B applies to the V70

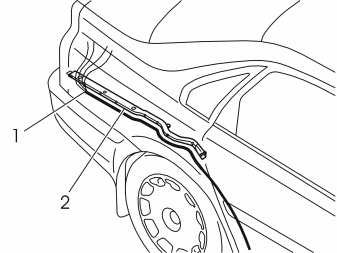

• Route the cable harness (1) out through the hole in the bodywork at the front edge / lower edge of the wheel arch and along the right-hand side of the rear cable duct / floor support (2) to the right tail lamp. Lift up the insulation panel for the wheel arch slightly to route the cable harness between the floor support / cable duct and the wheel arch.

• Remove the screw (1) from the accessory electronic module lock facing
• Pull the lock facing out to the right. Remove the lock facing.

• Lift the accessory electronic module out of the bracket.

• Disconnect the large connector from the Accessory Electronic Module. First press in catch A. Pull the black locking handle B in the direction of the arrow until a click is heard. Disconnect the connector
• Disconnect the connector from the accessory electronic module.

Remove:

• the black catch holding the black switch in place in the connector by pulling in the direction of the arrow
• the black switch by inserting a pointed object into the hole in the other end. Press the switch out.

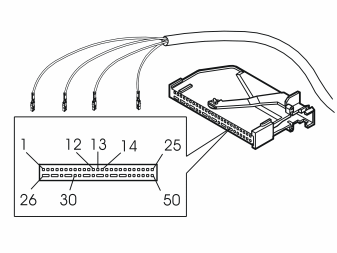

• Connect the routed cable harness to the connector for the accessory electronic module as follows:
• Cable marked TEL MUTE to terminal 12
• Cable marked RHEOSTAT + to terminal 13
• Cable marked SPEED-IN to terminal 14
• Cable marked AERIAL to terminal 30.

Примечание: The number markings can be found on the top of, and underneath the black switch. However, the markings are extremely small so be careful when installing the four cables.

Reinstall:

• the black switch in the connector. Lock into place using the catch
• the connector into the accessory electronic module. Lock into place using the black arm
• the accessory electronic module into place. Secure any excess cable
• the lock facing above the accessory electronic module. Tighten the screw and the nut. Tighten to 10 Nm (8 lbf.ft.).

• Clamp the cable harness at the right-hand cable duct in the cargo compartment (applies to the S60 and the S80. See procedure ru-RU0900c8af8013d8eb#KC01281796).

Install / Position / Fold back into position:

• the panels in the cargo compartment
• the cargo compartment carpet
• both the floor hatches
• the sill trim panel in the right-hand rear door
• the insulation panel
• the side cushion
• the backrest
• the seat cushion
• the right-hand front floor carpet
• the sill trim panel in the right front door
• the two covers
• the right side panel for the centre console.

Applies if the radio is already installed

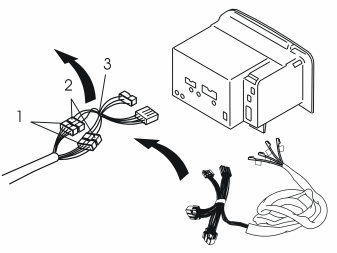

• Disconnect the connectors (1) from the connectors (2) in the existing T-cable (3) from the radio
• Place the T-cable to one side. The T-cable will not be reused
• Connect the new cable harness and T-cable at the same location as the old ones.

Applies to all models:

• Reinstall the radio tray
• Connect all wiring to the radio
• Connect the aerial adapter.

Reinstall:

• the radio
• the dashboard environmental panel
• the panel around the gear selector lever
• the panel in front of the gear selector lever (S60 and V70).

• Turn the ignition key to position II
• Reconnect the battery negative lead
• Program the software. See the service information in VIDA
• Program the radio code.
