Bolt kit, spare wheel

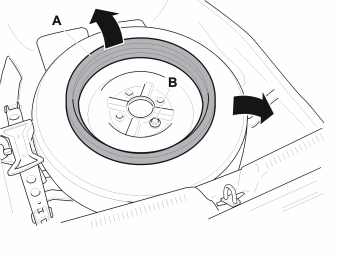

Illustration A

Applies to cars with a spacer ring

• Open the boot lid and fold up the cargo compartment carpet
• Remove the spacer ring (A). Remove the bolt (B). The bolt will not be reused
• Lift out the spare wheel.

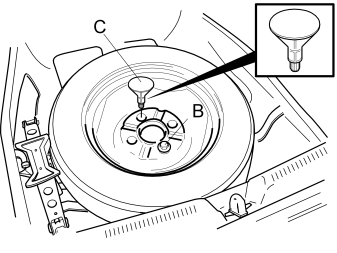

Illustration B

Applies to cars with spacers

• Open the boot lid and fold up the cargo compartment carpet
• Remove the spacer (C) and the bolt (B), these will not be reused
• Lift out the spare wheel.

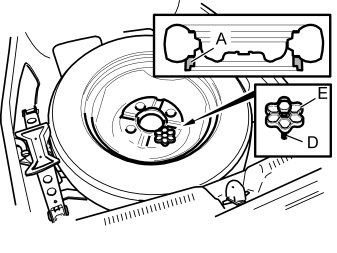

• Position the spacer ring (A) in the cargo compartment with the narrower diameter upwards. For cars without spacer ring P/N 30630239, the spacer ring must be purchased separately
• Turn the spare wheel over (inside of the wheel facing upwards) and position the spacer ring (A)
• Press the bolt (D) (from the kit) into the plastic cover (E) (from the kit). Tighten the spare wheel.

Illustration A

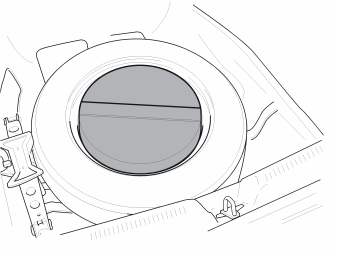

Position of detachable tow hitch in the spare wheel.

Illustration B

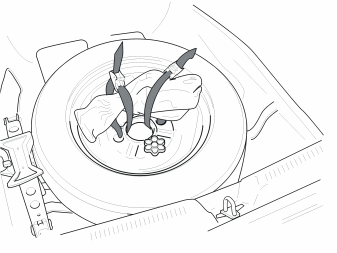

Position of safety kit in the spare wheel.

Illustration C

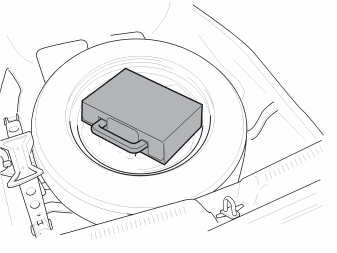

Position of the storage box in the spare wheel.

• Position the accessory in the spare wheel.
