Bicycle holder with hoist (1999, 2000)

• Fold up the lever (1). Release the lever by pulling the red catch (2).

Illustration A

• Position the front-rear strut (1) as illustrated
• Secure the strut on the bracket for the lever (2). Use the short Allen screws from the kit. Tighten crosswise. Tighten to 9-11 Nm (6.5-8 lbf.ft.).

Illustration B

• Fold the lever back into place by pressing the red plate (3).

Примечание: If the lever does not release with the red plate, the lever will spring back under considerable tension.

• Slide the extensions (1) into the front-rear strut. Lock into place using the screw (2).

Внимание: Hold the front-rear strut (1) as illustrated to avoid trapping fingers.

• Turn the bicycle holder and remove the transportation screw (2).

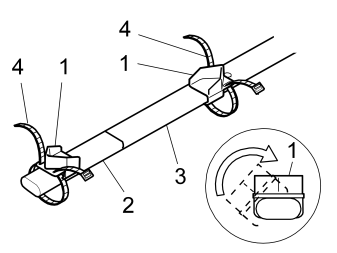

• Install the wheel holders (1) by twisting them. One wheel holder must be on the extension (2) and one on the strut (3).

Примечание: Only one wheel holder may be positioned on the extension.
- Position the short straps (4).

• Insert the strap for the saddle holder.
