Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2010 |
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| V50 | — | 2004–2010 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2010 |
Примечание: Always lock the bicycle while in transit. Check that the bicycle is properly secured.
Примечание: Certain wheels require longer wheel holder straps. These can be purchased separately (P/N 9184907).
Illustration 1A-B displays installing the bicycle holder
The bicycle holder can be secured on different types of roof mounted load carriers

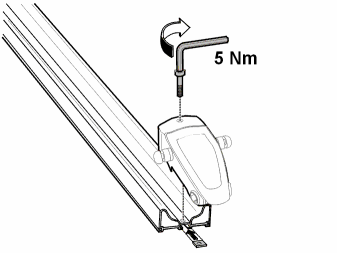

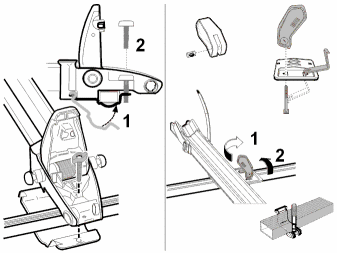

Illustration 2A displays mounting on load carriers with a square profile

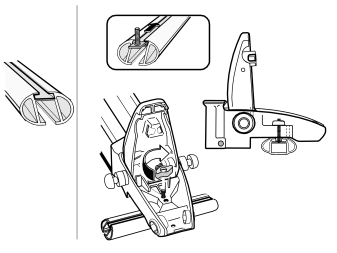

Illustration 2B displays mounting on load carriers with a T-groove profile (does not apply to the V70 XC)

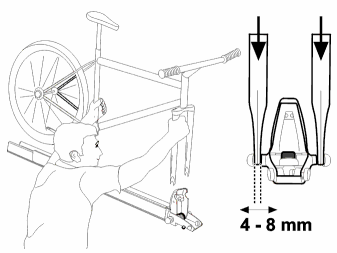

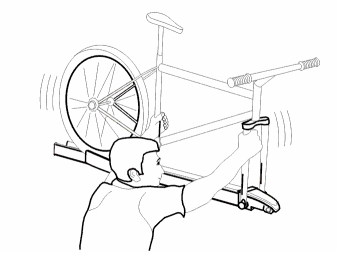

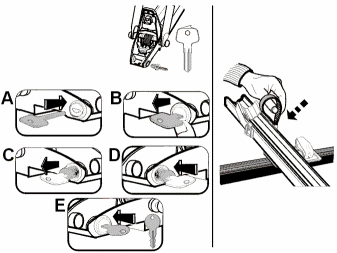

Illustration 3A-G displays mounting the bicycle on the bicycle holder

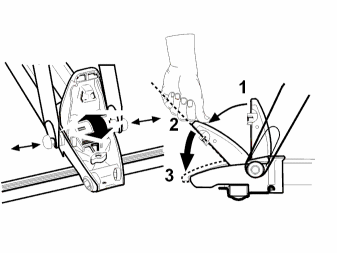

Illustration 3B displays adjusting the adjustment screw to achieve the correct tension when the cover is folded down
Illustration 3F applies to right-hand mounting
