Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2008 |
| S60 (-09) | — | 2001–2008 |
| S80 (-06) | — | 1999–2006 |
| V50 | — | 2004–2008 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2008 |

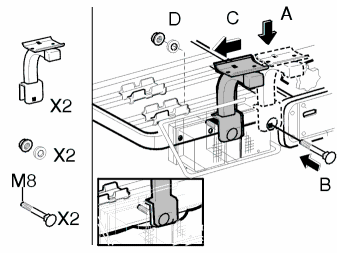

Mounting the brackets for the extra bicycle holder
- Push the cable to one side when installing, as illustrated.

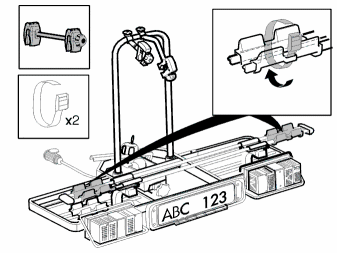

Mounting the extra bicycle holder

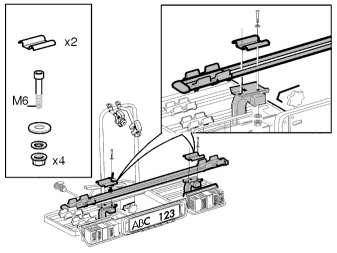

Installing the wheel strap and the bicycle frame holder
Примечание: When transporting an extra bicycle install the supplied bicycle frame holder high up on the frames on the second and third bicycles. Do not obstruct the high-mounted stop (brake) lamp (if applicable).
