Baby insert, child seat

Applies to 5-point seat belts

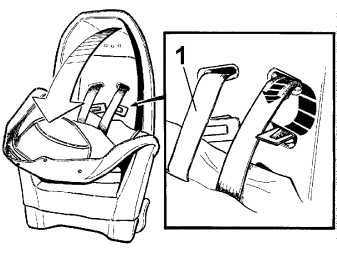

• Release upholstery at upper edge and pull forward.
• Note which group of holes the shoulder straps are routed through.
• Remove the shoulder straps (1) by pulling through the holes.

Applies to 5-point seat belts

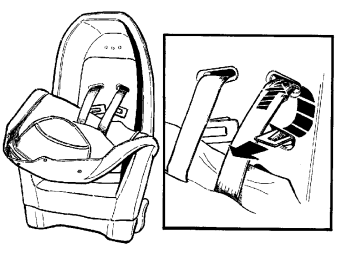

• Install the baby insert.
• At the appropriate height thread the shoulder straps through the holes in insert, upholstery and seat back.
• Thread the shoulder strap locking washers through the holes as illustrated.
• Check that the locking washers are correctly positioned.

Applies to 5-point seat belts

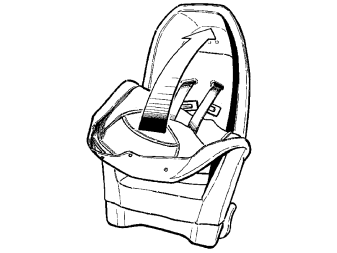

• Fold the upholstery back and press into place with the two clips.
• Straighten the upholstery.

Applies to 4-point seat belts

• Thread the child seat harness through the holes in the baby insert.

Applies to 4-point seat belts

• Position the baby insert correctly in the child seat and pull the harness lap belt forward.

Applies to both the belts

• Adjust the baby insert according to the child's height by moving the upper collar upwards or downwards.
