Auxiliary spotlamps

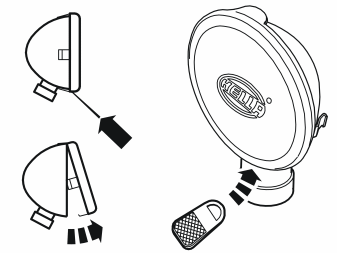

• Pry the light insert from the lamp housing using the tool supplied.

• Install the rubber grommet and the metal ring on the lamp housing.

Illustration A

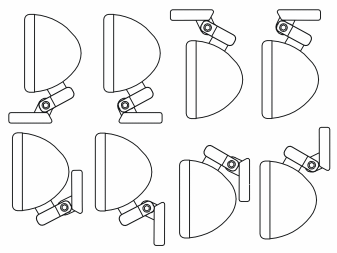

The spot lamp can be installed in several different ways. See the illustration.

Illustration B

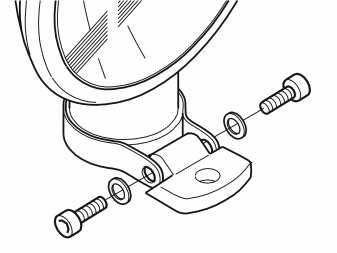

• Install the mounting in the required way on the lamp housing. Use two screws and two washers.

• Insert the cables through the lamp housing
• Install the flat pin contactors on both the cables
• Supply the blue cable (BL) with a socket housing to prevent short-circuits
• Connect the blue cable (BL) to the cable for the lamp
• Connect the black cable (SB) to ground on the light insert.

• Assemble the light insert and the lamp housing. Carefully stretch the cables
• Install the spot lamp on the bracket.
