Применимость

Модель Двигатель Год
S60 (-09) 2001–2009
S80 (-06) 1999–2006
V70 (00-08) 2000–2008
V70 XC (01-) / XC70 (-07) 2001–2007
XC90 2005–2015

M8401168

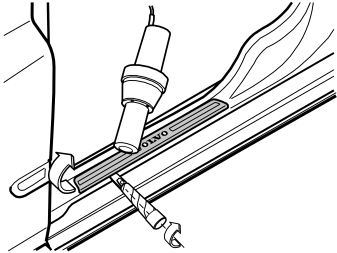

  • Clean the door sills where the new door sill trim strips are to be installed
  • Heat the door sill trim strip using a hot-air gun to approximately 60°C. At the same time detach the door sill trim strip. Use a plastic weatherstrip tool. Do not damage the painted surfaces.

M8401169

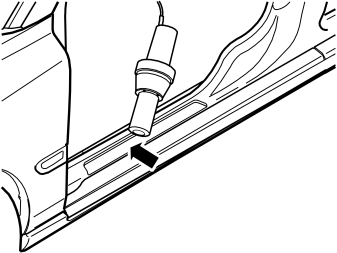

  • Heat and remove the remaining pieces of tape.

M8401170

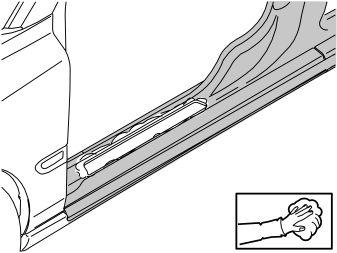

  • Clean the surfaces where the new door trim strip is to be installed. Use a mixture of 30 % windscreen washer fluid and 70% water. Wipe dry.

M8401167

  • Take the door sill trim strip from the kit. Pull off a small piece of masking tape.

M8401171

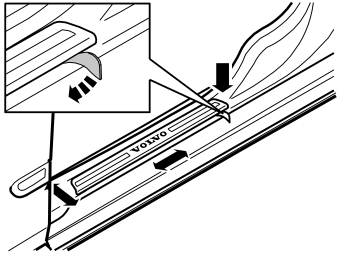

  • Carefully position and align the door sill trim strip in place of the old door sill trim strip
  • Press the front edge so that the tape adheres
  • Pull off the masking tape whilst maintaining the position of the door sill trim strip. Press the trim after removing the masking tape.

M8401172

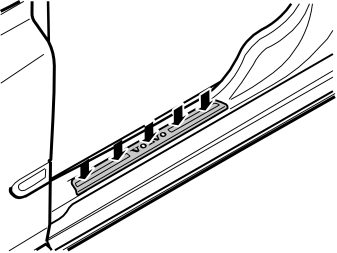

  • Secure the door sill trim strip securely in position. Use a pressure of 2 kg/cm2 along the entire length of the door sill trim strip.

Примечание: Work must be carried out at a temperature of at least 20°C (68°F). Leave the car indoors for 2 hours after carrying out the work. Do not wash the car for 48 hours.
