Alcolock, installation kit (2004, 2005)

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

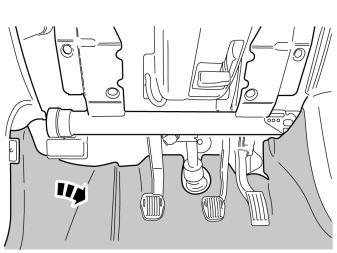

• Remove the three screws in the soundproofing panel on the left-hand side.
• Push the carpet on the left-hand side of the centre console to one side.

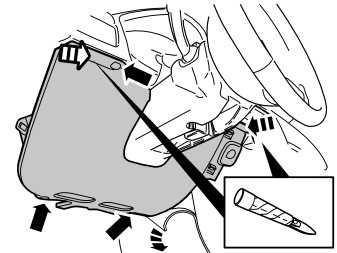

• Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

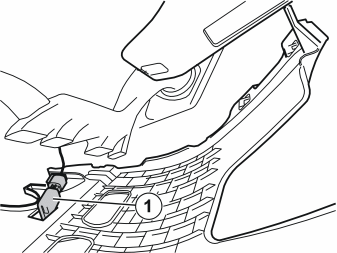

• Disconnect the connector for lighting (1) and remove the soundproofing panel.

• Fold the carpet to one side on the left-hand side.

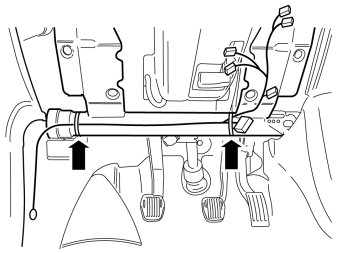

• Place the fuse holder and connector for the alcolock on the member and secure them with tie straps.

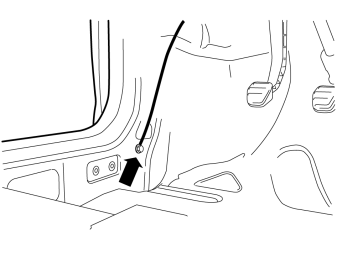

• Place the ground connection for the cable harness at the front ground terminal in the A post.

• Install the ground lead, use new screws from the kit.Tighten the M6 screw to 10 Nm.
• Fold back the carpet.

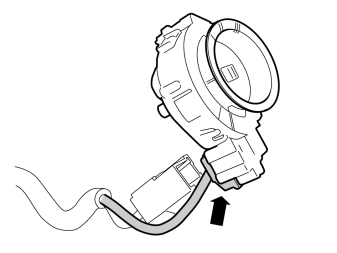

• Disconnect the existing connector from the ignition switch.
• Connect the connectors from the new cable harness to the corresponding connector in the ignition switch and the existing disconnected cable.

• Connect the connectors from the new cable harness to the corresponding connector for lighting (1), which was previously disconnected.
• Reinstall the soundproofing panel.

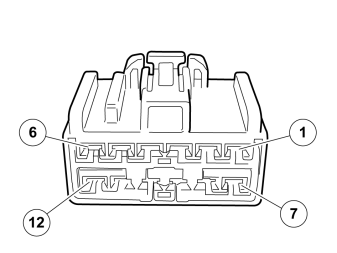

Connector for alcolock

1. 30+ feed (battery supply)
2. 15+ feed (ignition supply)
3. Start-in (kl50)
4. Start-out (kl50)
5. Preheat, act-low
6. Ground-, (31)
7. 30+ feed, controlled

Примечание: 30+ battery supply ( 1) must only be used in exceptional cases when log function for disconnection of the alcolock is required. In all other cases, 30+ battery supply (7) should be used, to prevent shortening the service life of the battery.
