Alarm switch

• Turn the ignition switch to position 0.

• Disconnect the battery negative lead.

Примечание: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

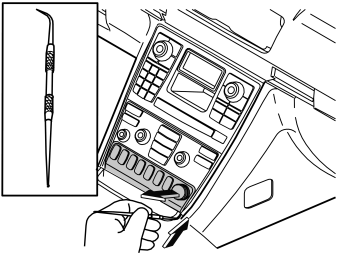

Illustration A

• Remove the blind cover plug from the 12V socket
• Take a scriber with an angled point. Insert the angled end of the scriber in the joint underneath, on one side of the surround for the switch unit.

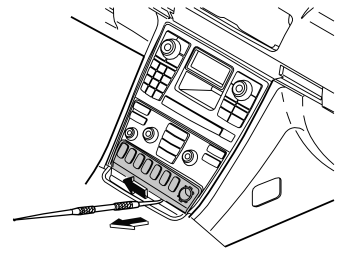

Illustration B

• Carefully pull out the surround from underneath using the scriber. The surround is secured with three mounting lugs at the top and lower edges.

Примечание: Do not damage the surround.

• Place the surround to one side.

Подсказка: The surround with three button spaces can be replaced with a surround with seven button spaces if necessary. This can be purchased separately.

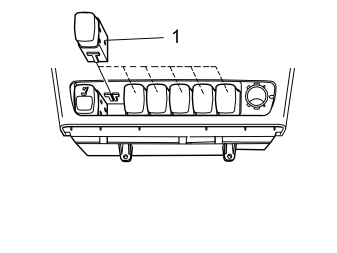

• Remove the switch blank. Install the new switch (1) in any location
• Reinstall the surround and blind cover plug for the 12V socket.
