Alarm, switch

• Turn the ignition key to position 0.

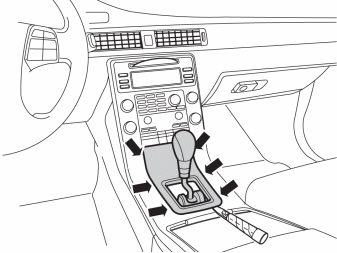

• Carefully prize away the panel around the gear selector lever using a weatherstrip tool. It is secured along the longitudinal sides with six catches. Start prizing in the rear edge of the panel.

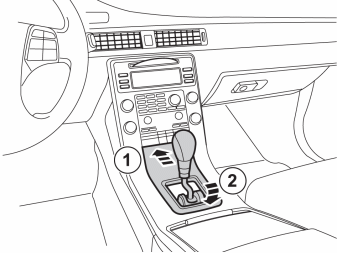

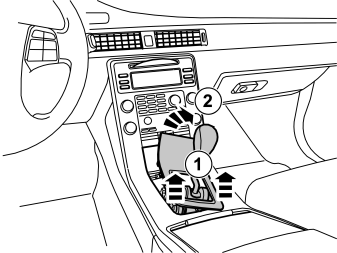

• Twist / remove the panel, so that the row with switches/dummy buttons is accessible.

The new switch must be fitted in the first available button location seen from the steering wheel.

Примечание: The illustrations show a left-hand drive car.

Подсказка: In the cases where the switch shall be located furthest out in the button row, first remove the closest adjacent dummy to avoid damaging the centre console panel:

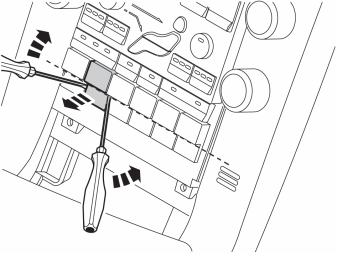

• Remove the penultimate dummy button in the button row by carefully prizing it out using two small screwdrivers as illustrated.

Примечание: Always prize against the surfaces that are subsequently covered by the gear selector lever panel (under the dotted line).

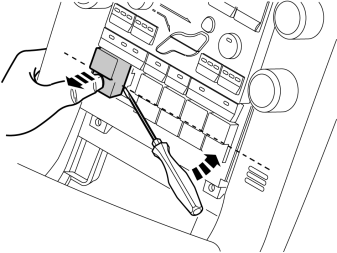

• Carefully prize away the dummy button where the new switch shall be fitted. Use the thumb of your other hand to counterhold at the same time.

Примечание: Do not insert the screwdriver so far that the circuit board in the bottom is damaged.
- Place the dummy button that shall not be re-used to one side.

• Install the new switch from the kit, and any dummy button.

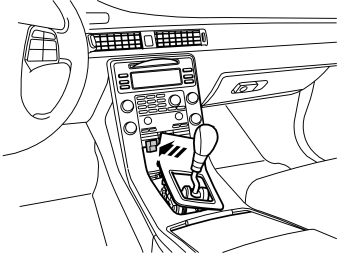

• Reinstall the panel around the gear selector lever
