Alarm, basic kit (1999, 2000)

Illustration A applies to the S80

Carry out the following on the left and right-hand sides of the car

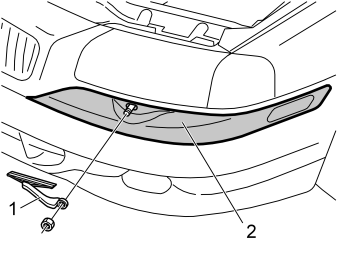

• Remove the headlamp wiper arm (1). Disconnect the washer hose
• Remove the plastic protector (2) using a weatherstrip tool. Start at the centre of the protector
• Disconnect the turn signal lamp cable. Remove the protector.

Illustration B applies to the V70 (00–) and the S60

Carry out the following on the left and right-hand sides of the car

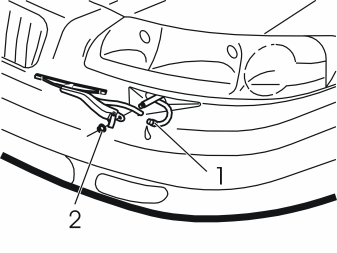

• Disconnect the headlamp washer hose at the joint (1)
• Remove the headlamp wiper arm by removing the nut (2) under the cover and pulling it off.

Illustration C applies to the V70 (00–) and the S60

Carry out the following on the left and right-hand sides of the car

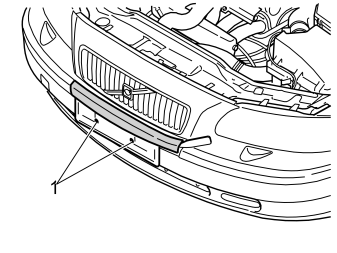

• Remove the trim strip on the bumper by prying it off at one end using a weatherstrip tool. Then carefully pull the trim strip off.

Illustration D applies to the V70 (00–) and the S60

• Remove the number plate by prying out the bottom of the moulding and removing it
• Remove the two screws (1) on the number plate holder. Remove the number plate holder
• Remove the centre trim strip on the bumper by prying it off at one end using a weatherstrip tool, and then carefully pulling it off.

Illustration A applies to the S80

Carry out the following on the left and right-hand sides of the car

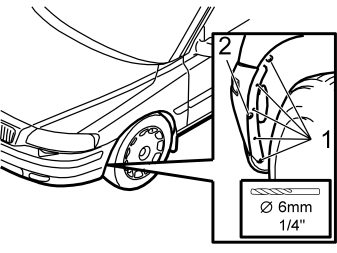

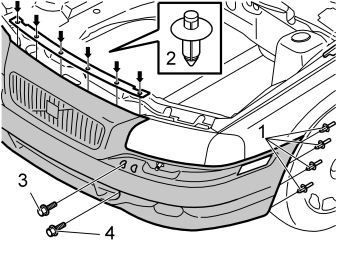

• Carefully drill out 4 of the 5 blind rivets (1) from the wing liner at the front edge of the wheel arch
• Push in the centre of the clips (2). Remove the clips
• Remove the screws (3) and (4) from the bumper
• Pull out the front slightly. Disconnect the connector on the left-hand side
• Lift off the front.

Illustration B applies to the V70 (00–) and the S60

Carry out the following on the left and right-hand sides of the car

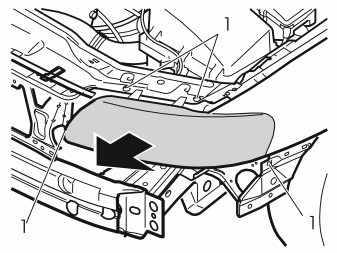

• Drill out the four blind rivets (1) which hold the inner wing liner at the bumper
• Unscrew the screw (2). Press forward.

Illustration C applies to the V70 (00–) and the S60

• Push in the centre of the clips (1). Remove the clips.

Illustration D applies to the V70 (00–) and the S60

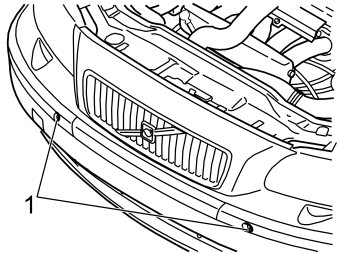

• Remove the two screws (1) holding the bumper
• Remove the bumper by pulling it forward to free it from the guides on the left and right-hand sides. If the car is equipped with fog lamps: Disconnect the connectors.

Illustration E applies to the V70 (00–) and the S60

Carry out the following on the left-hand side of the car

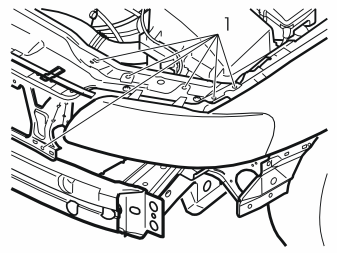

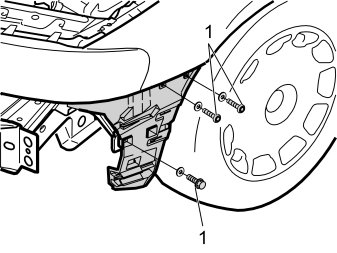

• Remove the bumper mounting bracket. First remove the three screws (1).

Carry out the following on the right-hand side of the car

• Raise the car
• Turn the wheels to the left

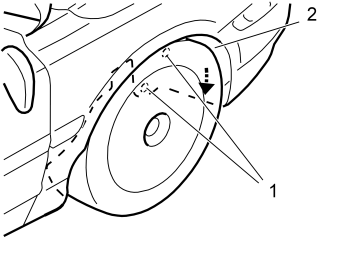

• Carefully drill out the remaining blind rivet from the wing liner at the front edge of the wheel arch
• Remove the nuts (1) from the wing liner. Fold down the wing liner (2).

Carry out the following on the right-hand side of the car

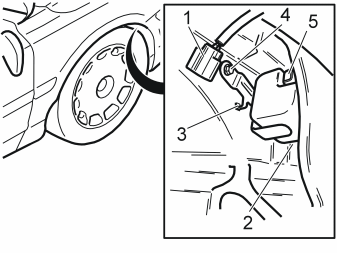

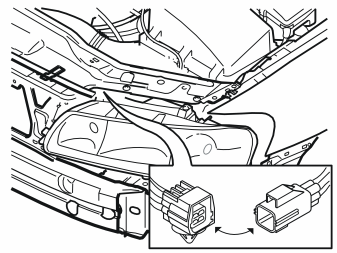

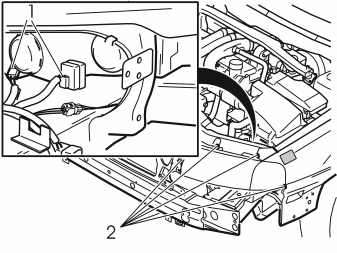

• Disconnect the existing connector (1) from the clip
• Install the siren in the front (2) and rear (3) guide hole
• Install the screw (4) in the siren mounting
• Connect the existing connector (1) to the siren connector (5).

Illustration A applies to the S80

Carry out the following on the left-hand side of the car

• Disconnect the connectors (1) for the headlamp
• Remove the headlamp screws (2). Pull out the headlamp
• Disconnect the turn signal lamp and the headlamp wiper connectors
• Remove the headlamp.

Illustration B applies to the V70 (00–) and the S60

Carry out the following on the left-hand side of the car

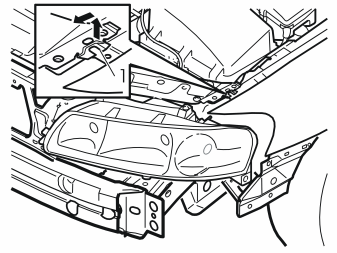

• Remove the four screws (1) holding the headlamp to the body
• Pull out the headlamp slightly. Disconnect the connectors
• Remove the headlamp.

Applies to the V70 (00–) and S60 with Automatic Climate Control, Electronic Climate Control

Carry out the following on the left and right-hand sides of the car

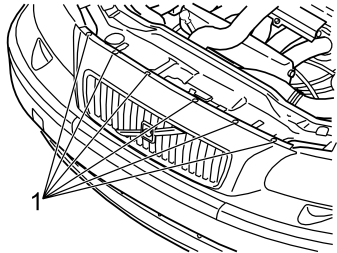

• Remove the six screws (1) for the front cover plate.

Applies to the V70 (00–) and S60 with Automatic Climate Control, Electronic Climate Control

• Pull up the outer edges of the front cover plate to free it from its mounting (1)
• Lift up the front cover plate on the left side. Position a shim between the front cover plate and the headlamp mounting.

Only applies to left-hand drive cars

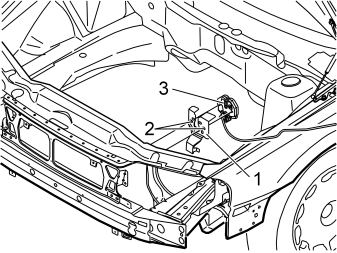

• Remove the cover (1) and the screw from the bonnet catch control
• Pull out the carpet from the front edge of sill trim panel
• Disconnect the cable from the control.

• Mark out the position of the screw heads on the bonnet catch bracket (1)
• Remove the bonnet catch screws (2)
• Disconnect the wire from the left bonnet catch (3). Remove the bonnet catch.

• Install the cable on the new bonnet catch (from the kit)
• Install the bonnet catch. Secure the bonnet catch with the two screws.

Примечание: Marked positions for the screw heads.

• Connect the bonnet catch connector to the existing connector beside the bonnet catch.

Only applies to left-hand drive cars

• Reinstall the cable to the bonnet opener control
• Tighten the control using the screw. Reinstall the cover
• Reinstall the carpet.

Applies to all cars

• Check the function of the bonnet catches.

Applies to the S80

• Reinstall the left headlamp
• Reinstall the right wing liner
• Reinstall the bumper
• Reinstall the plastic protectors under both headlamps
• Reinstall the headlamp wiper arms and the headlamp washer hoses for both headlamps
• Secure the wing liner using blind rivets on both sides. See operation 2 and 3.
• Check the headlamp beam alignment.

Applies to the V70 (00–) and S60 with Automatic Climate Control, Electronic Climate Control

• Reinstall the front cover plate.

Applies to the V70 (00–) and the S60

• Reinstall the left headlamp
• Reinstall the bumper and the mounting brackets
• Install the three trim strips
• Reinstall the headlamp wiper arms and the headlamp washer hoses for both headlamps (if applicable)
• Secure the wing liner using rivets. Install and tighten the screws on both sides
• Check the headlamp beam alignment.

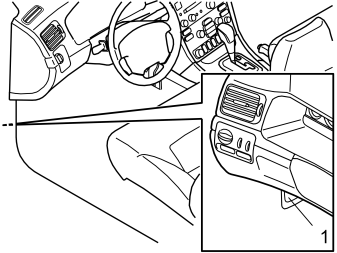

• Remove the cover (1) on the left-hand side of dashboard
• Install a 5 A fuse:in terminal 29 for cars up to and including model year –00.in terminal 38 for cars from model year 01–04 inclusive.Cars from model year 05 have this fuse fitted.
• Program the software. See the service information in VADIS/VIDA.
• Check the function of the alarm.

• Install the decals on the front side windows.

Applies to Sweden and Norway

• Apply the type decal to the inside of the glove compartment
• Apply decals SSF (S) / FG (N) to the front side windows.
