Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S80 (-06) | — | 1999–2003 |
- Fold up the cargo compartment carpet.
- Turn the knob (1) 90 º and lower the rear side panel.
- Locate the cable splice terminals for the towbar electrical connector at the left-hand rear lamp and separate them from each other.

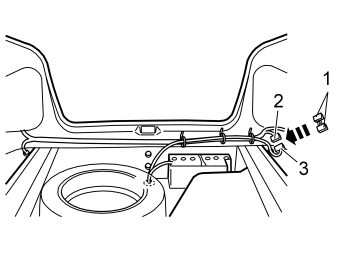

- Plug the short adapter cable's connectors (1) into connector (2) on the pre-routed cable to the cable harness for the towbar, and into connector (3) on the cable harness routed to the towbar electrical connector.
- Fold back the side panel and refit the cargo compartment carpet.
