Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2008 |
| S60 (-09) | — | 2001–2008 |
| S80 (-06) | — | 1999–2006 |
| V50 | — | 2004–2008 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2008 |

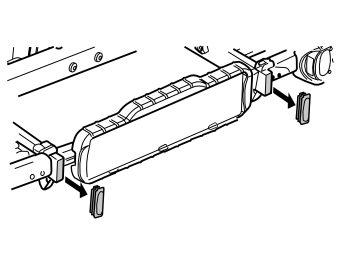

- Remove the cover.
Illustration A

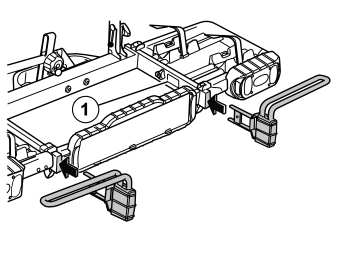

- Remove the labels (1) for the holes
- Install the adapters. Turn them as displayed in illustrations B and C.
12”-16”

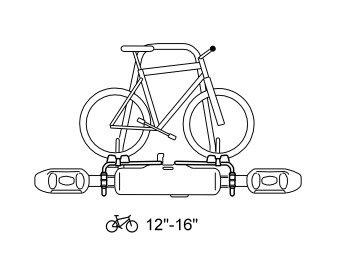

- For 12”-16” bicycles the holders are positioned as displayed in illustration B.
16”-28”

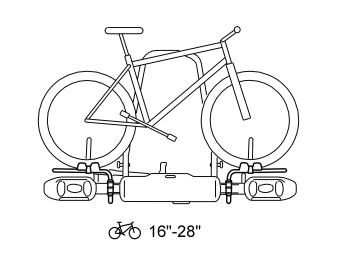

- For 16”-28” bicycles the holders are positioned as displayed in illustration C.

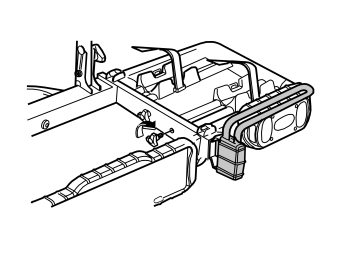

- Install the mounting screws and tighten the adapters.

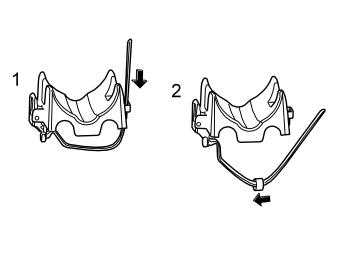

- Thread the rings onto the straps.

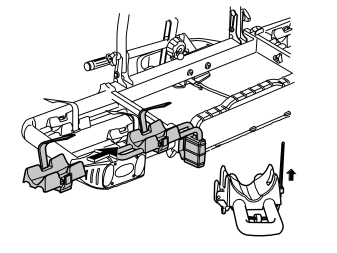

- Install the wheel holders so that they are locked with a “click”.
